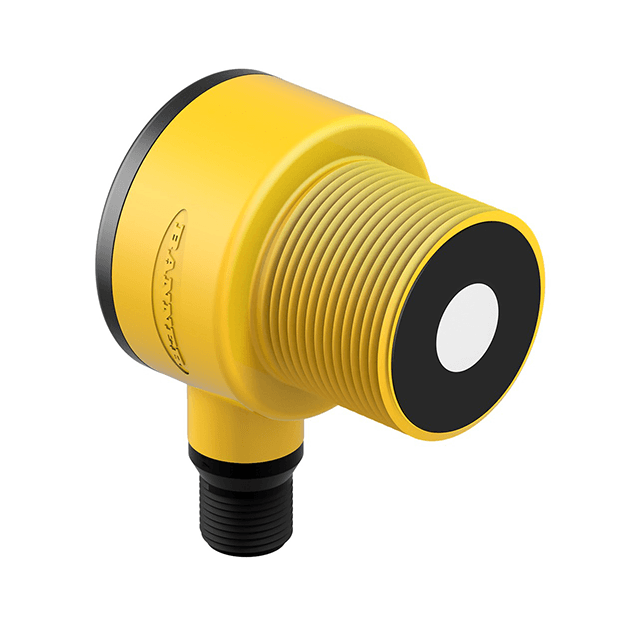

Ultrasonic sensor Diffuse-mode sensor
T30UXUCQ8
Order ID no. 3080476
In Stock
List Price
A$1,185.76
home
Turck-Shop
Sensors
Ultrasonic Sensors
T30UXUCQ8
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 40 mm
Design
Tube

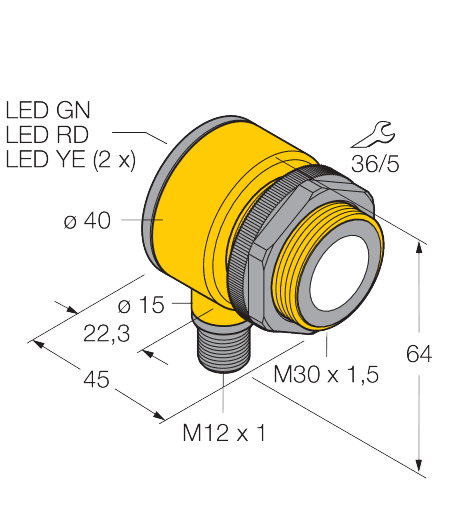

Dimensions
45 mm
Dimension unit
MMT
EAN/UPC code
662488804763
Electrical connection
Connector
Function
Proximity switch
Gross weight
120
Height
50
Housing material
Plastic
Housing quality
PBT
Length
130
Max. range (mm)
3000
Net weight
120
Operating mode
Time-of-Flight
Output function
Analog output
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Volume
585
Volume unit
CMQ
Weight unit
GRM
Width
90
Key Features
Electrical connection
Connector
Output function
Analog output
Max. range (mm)
3000
Item Total
A$1,185.76
