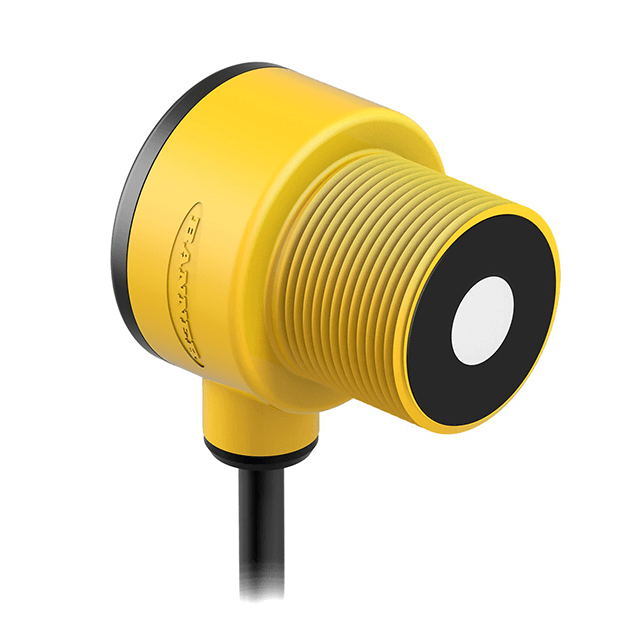

Ultrasonic sensor Diffuse-mode sensor
T30UIPA
Order ID no. 3055974
In Stock
home
Turck-Shop
Sensors
Ultrasonic Sensors
T30UIPA
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
2
Construction size
⌀ 40 mm
Design
Tube

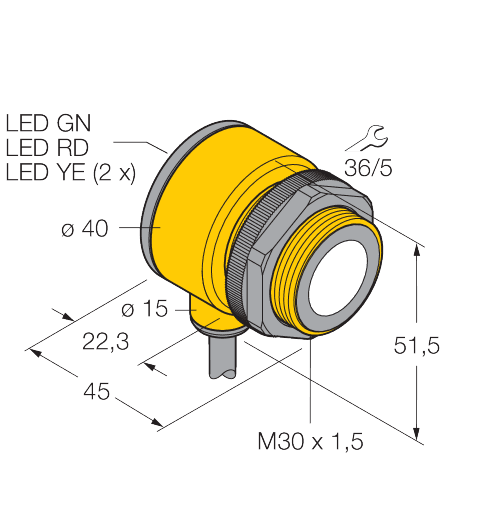

Dimensions
45 mm
Dimension unit
MMT
EAN/UPC code
662488559748
Electrical connection
Cable
Function
Proximity switch
Gross weight
213.19
Height
60
Housing material
Plastic
Housing quality
PBT
Length
130
Max. range (mm)
1000
Net weight
213.19
Operating mode
Time-of-Flight
Output function
PNP/Analog output
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Switching element function
normally open NO
Volume
702
Volume unit
CMQ
Weight unit
GRM
Width
90
Key Features
Electrical connection
Cable
Output function
PNP/Analog output
Max. range (mm)
1000
