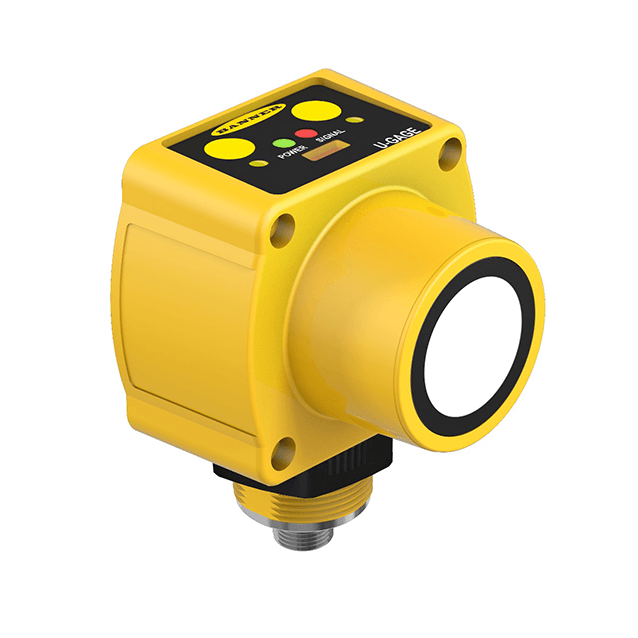

Ultrasonic sensor Diffuse-mode sensor
QT50UDBQ
Order ID no. 3002723
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Connector type
M12 x 1
Design
Rectangular

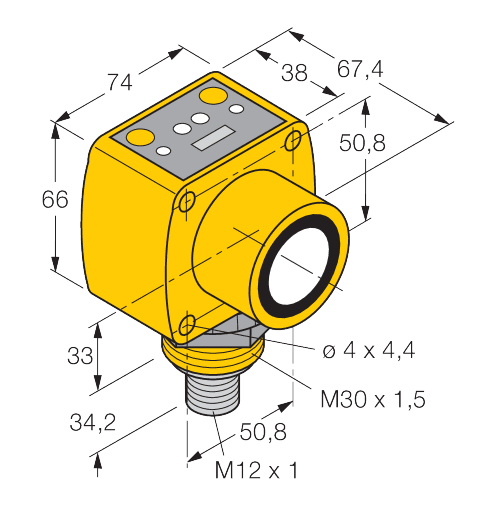

Dimensions
67,4 mm x 74 mm x 100,2 mm
Dimension unit
MMT
EAN/UPC code
662488027230
Electrical connection
Connector
Function
Proximity switch
Gross weight
504
Height
90
Housing material
Plastic
Housing quality
PBT
Length
240
Max. range (mm)
8000
Net weight
504
Operating mode
Time-of-Flight
Output function
PNP
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection, Pump function
Switching element function
2 x NO contact
Volume
3348
Volume unit
CMQ
Weight unit
GRM
Width
155
home
Turck-Shop
Sensors
Ultrasonic Sensors
QT50UDBQ
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
8000
In Stock
