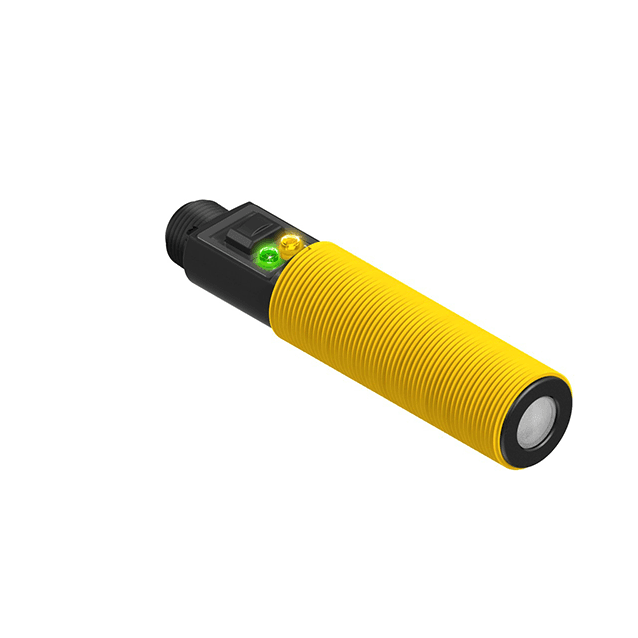

Ultrasonic sensor Diffuse-mode sensor
S18UUAQ
Order ID no. 3002700
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Tube
Dimensions
90,9 mm
Dimension unit
MMT
EAN/UPC code
662488027001
Electrical connection
Connector
Function
Proximity switch
Gross weight
71
Height
30
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Length
140
Max. range (mm)
300
Net weight
71
Operating mode
Time-of-Flight
Output function
Analog output
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Volume
378
Volume unit
CMQ
Weight unit
GRM
Width
90
home
Turck-Shop
Sensors
Ultrasonic Sensors
S18UUAQ
Key Features
Electrical connection
Connector
Output function
Analog output
Max. range (mm)
300
In Stock
List Price
A$907.88
Item Total
A$907.88
