- Ambient temperature max. (°C)
- 65
- Ambient temperature min. (°C)
- -40
- Antenna connection
- Internal, planar
- Approvals
- CE, UKCA, UL Listed
- Base unit
- PCE
- Cable length (m)
- 150
- Communication protocol
- IO-Link
- Connector type
- M12 x 1
- Design
- Rectangular with thread

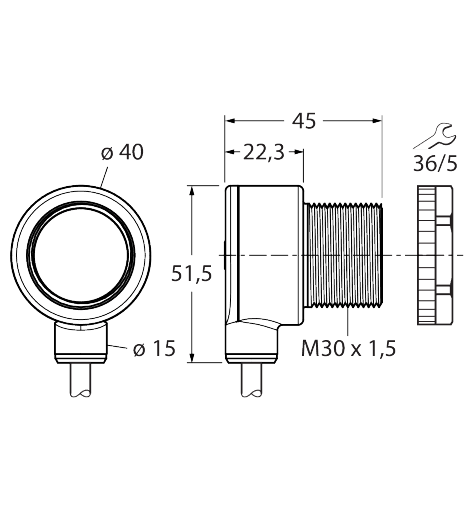

- Dimensions
- 52,9 mm x 40,6 mm x 63,8 mm
- Dimension unit
- MMT
- EAN/UPC code
- 662488071585
- Electrical connection
- Cable with connector
- Frequency band
- F band, ISM region
- Frequency range
- 122…123 GHz
- Function
- Distance measurement
- Function
- Proximity switch
- Gross weight
- 105
- Height
- 45
- Housing material
- Plastic
- Housing quality
- PBT
- Housing surface
- Yellow
- Length
- 120
- Max. range (mm)
- 15000
- Net weight
- 105
- Operating voltage
- DC
- Output function
- PNP/NPN, analog output
- Protection class
- IP67
- Setting option
- Push Button, Vision Software and Firmware
- Switching element function
- NO/NC programmable
- Volume
- 0.432
- Volume unit
- DMQ
- Weight unit
- GRM
- Width
- 80
