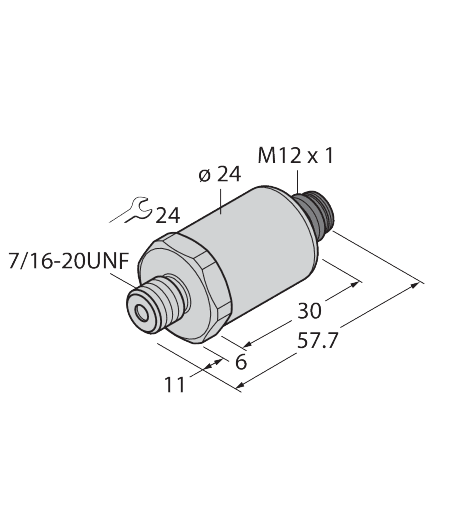

Pressure Transmitter With Voltage Output (3-Wire)
PT7500PSIG-2005-U1-H1141
Order ID no. 6837368
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Base unit
PCE
Connector type
M12 x 1
Design
Without display
Dimension unit
MMT
EAN/UPC code
4047101429398
Electrical output
Voltage output (3-wire)
Electrical connection
Connector
Gross weight
90
Height
0
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length
0
Material pressure transducer
Stainless steel 1.4435 (AISI 316L)
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Net weight
90
Operating voltage
DC
Output function
Analog output voltage
Pressure range
0...517,11 bar
Pressure type
Relative pressure
Process connection
7/16″-20 UNF male thread
Protection class
IP67
Volume
0
Weight unit
GRM
Width
0
home
Turck-Shop
Sensors
Pressure Sensors
PT7500PSIG-2005-U1-H1141
Key Features
Electrical output
Voltage output (3-wire)
Process connection
7/16″-20 UNF male thread
In Stock
List Price
A$540.08
Item Total
A$540.08
