Pressure Transmitter With Current Output (2-Wire)

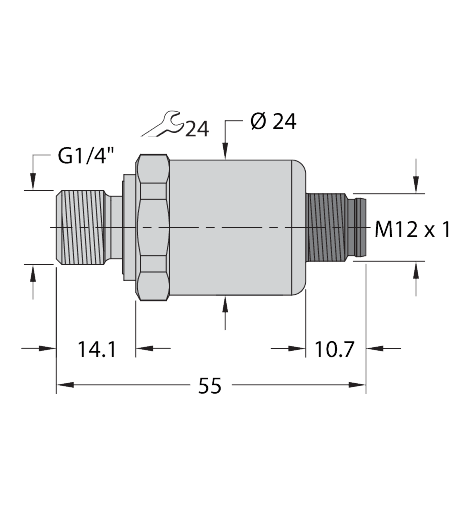

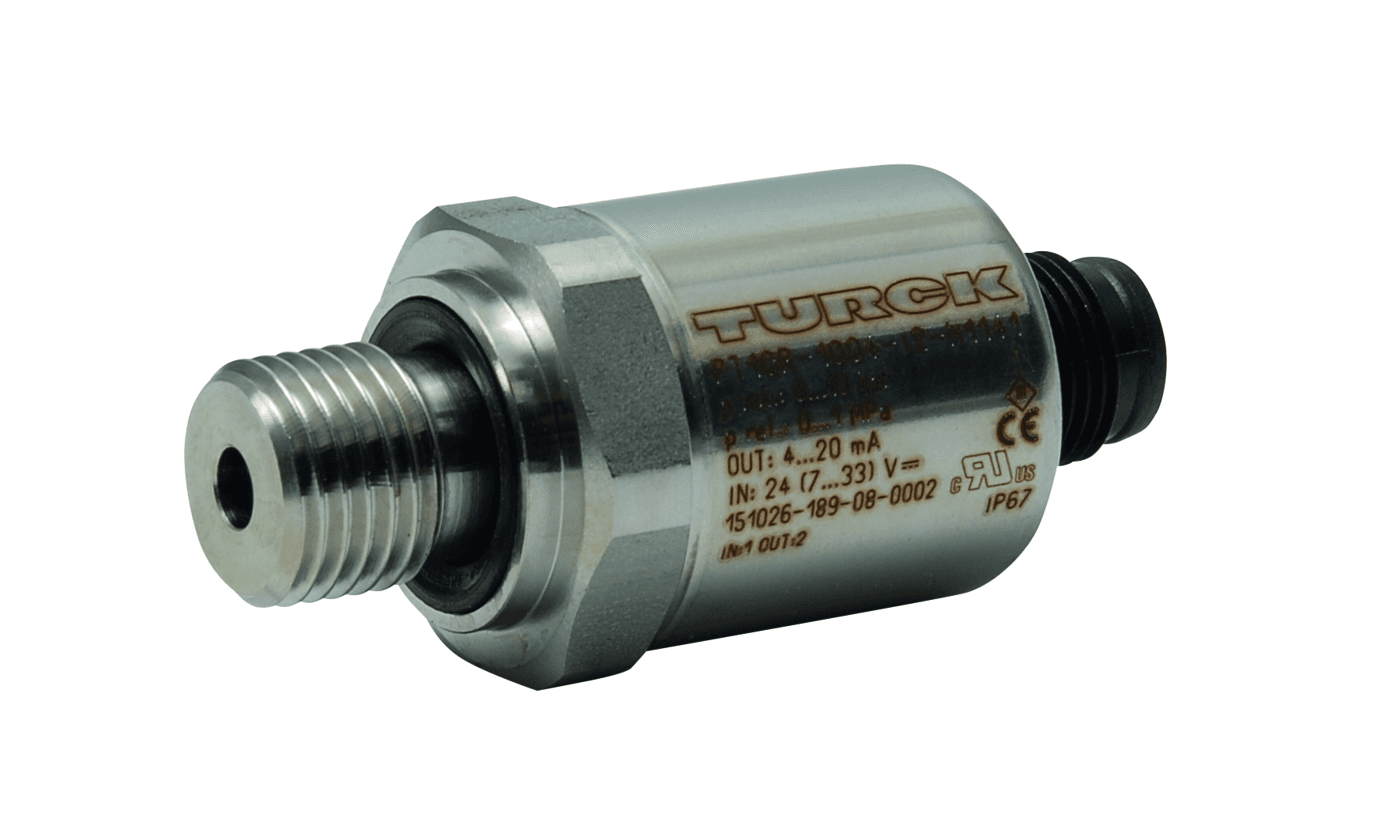

PT16R-1004-I2-H1143

Order ID no. 6836350

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Base unit: PCE
Connector type: M12 x 1
Design: Without display
Dimension unit: MMT
EAN/UPC code: 4047101398496
Electrical output: Current output (2-wire)
Electrical connection: Connector
Gross weight: 85
Height: 40
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length: 160
Material pressure transducer: Ceramic Al₂O₃
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Net weight: 85
Operating voltage: DC
Output function: Analog output current
Pressure range: 0...16 bar
Pressure type: Relative pressure
Process connection: G 1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Protection class: IP67
Volume: 576
Volume unit: CMQ
Weight unit: GRM
Width: 90

In Stock
List Price	A$318.50
