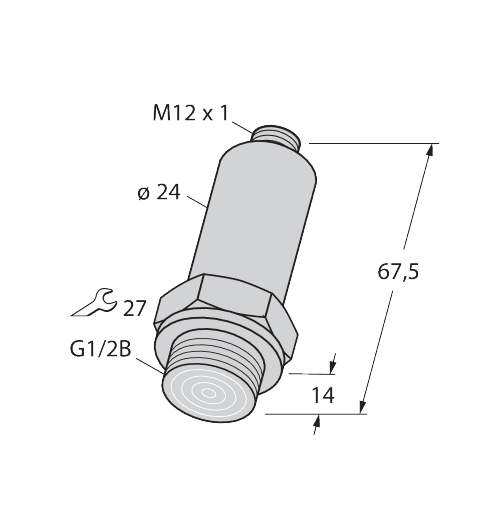

Pressure Transmitter, Front-Flush With Current Output (2-Wire)
PT060R-29-LI3-H1140
Order ID no. 6831558
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-25
Base unit
PCE
Connector type
M12 x 1
Design
Without display
Dimension unit
MMT
EAN/UPC code
4047101228632
Electrical output
Current output (2-wire)
Electrical connection
Connector
Gross weight
129
Height
40
Housing material
Stainless steel
Housing quality
1.4435 (AISI 316L)
Length
100
Material pressure transducer
Stainless steel 1.4548 (AISI 630)
Media temperature max. (°C)
85
Media temperature min. (°C)
-25
Net weight
129
Operating voltage
DC
Output function
Analog output current
Pressure range
0...60 bar
Pressure type
Relative pressure
Process connection
G 1/2″ front-flush
Protection class
IP67
Volume
320
Volume unit
CMQ
Weight unit
GRM
Width
80
home
Turck-Shop
Sensors
Pressure Sensors
PT060R-29-LI3-H1140
Key Features
Electrical output
Current output (2-wire)
Process connection
G 1/2″ front-flush
In Stock
List Price
A$1,305.83
Item Total
A$1,305.83
