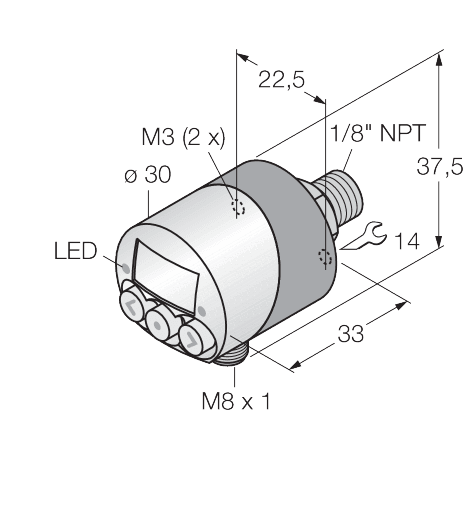

PK01V-N14AL-2UP8X-V1141 | TURCK - Your Global Automation Partner
Pressure sensor IO-Link with 2 PNP Transistor Switching Outputs
PK01V-N14AL-2UP8X-V1141
Order ID no. 100042118
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-10
Base unit
PCE
Connector type
M8 x 1
Design
With display
Dimension unit
MMT
Display
3-digit 7-segment display, rotatable by 360°
EAN/UPC code
4047101604849
Electrical output
2 x switching output
Electrical connection
Connector
Gross weight
63
Height
0
Housing material
Aluminium
Housing quality
Al/PVC
Length
0
Material pressure transducer
Silicon
Media temperature max. (°C)
60
Media temperature min. (°C)
0
Net weight
63
Operating voltage
DC
Output function
PNP
Pressure range
-1...1 bar
Pressure type
Relative pressure
Process connection
1/8″ NPT male thread
Protection class
IP65
Switching element function
NO/NC
Volume
0
Weight unit
GRM
Width
0
home
Turck-Shop
Sensors
Pressure Sensors
PK01V-N14AL-2UP8X-V1141
Key Features
Electrical output
2 x switching output
Process connection
1/8″ NPT male thread
Pressure range
-1...1 bar
In Stock
List Price
A$797.10
Item Total
A$797.10
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
