PT500PSIG-2103-I2-DT043P | TURCK - Your Global Automation Partner
Pressure Transmitter With Current Output (2-Wire)

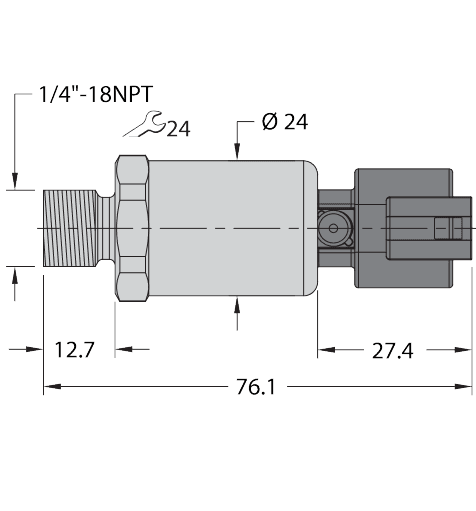

PT500PSIG-2103-I2-DT043P
Order ID no. 100019221
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
100
Ambient temperature min. (°C)
-40
Approvals
cULus
Base unit
PCE
Connector type
Deutsch DT04-3P
Design
Without display
Dimension unit
MMT
EAN/UPC code
4047101525014
Electrical output
Current output (2-wire)
Electrical connection
Connector
Gross weight
90
Height
0
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length
0
Material pressure transducer
Stainless steel 1.4404 (AISI 316L)
Media temperature max. (°C)
125
Media temperature min. (°C)
-40
Net weight
90
Operating voltage
DC
Output function
Analog output current
Pressure range
0...34,47 bar
Pressure type
Relative pressure
Process connection
1/4″ NPT-18 male thread
Protection class
IP69K
Volume
0
Weight unit
GRM
Width
0
Key Features
Electrical output
Current output (2-wire)
Process connection
1/4″ NPT-18 male thread
In Stock
List Price
A$571.34
