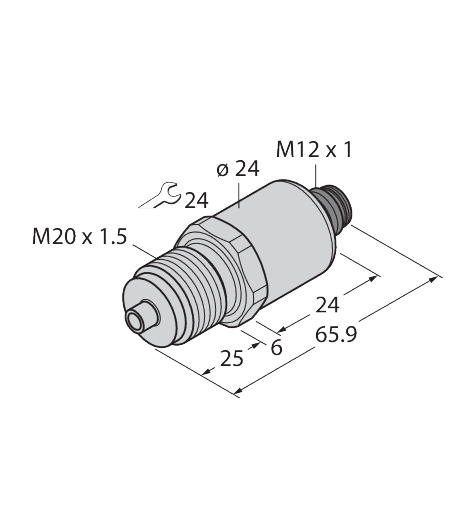

Pressure Transmitter With Current Output (2-Wire)

PT2.5R-1020-I2-H1143

Order ID no. 100004633

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Base unit: PCE
Connector type: M12 x 1
Design: Without display
Dimension unit: MMT
EAN/UPC code: 4047101502152
Electrical output: Current output (2-wire)
Electrical connection: Connector
Gross weight: 115
Height: 40
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length: 100
Material pressure transducer: Ceramic Al₂O₃
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Net weight: 115
Operating voltage: DC
Output function: Analog output current
Pressure range: 0...2,5 bar
Pressure type: Relative pressure
Process connection: M20 x1.5 male thread, front sealing and manometer (combi)
Protection class: IP67
Volume: 0.28
Volume unit: DMQ
Weight unit: GRM
Width: 70

In Stock
List Price	A$318.50
