Pressure Transmitter With Voltage Output (3-Wire)

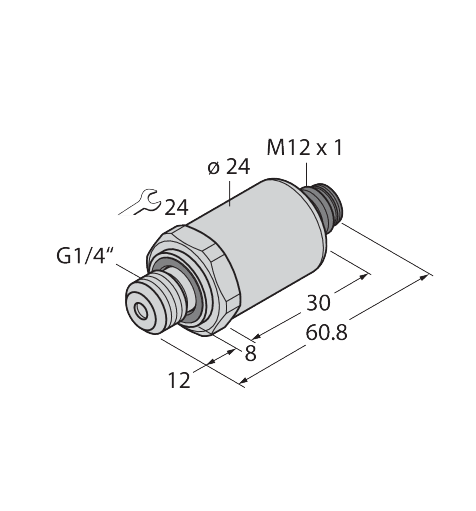

PT400R-2004-U2-H1143/X

Order ID no. 100001953

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Base unit: PCE
Connector type: M12 x 1
Design: Without display
Dimension unit: MMT
EAN/UPC code: 4047101454796
Electrical output: Voltage output (3-wire)
Electrical connection: Connector
Gross weight: 99
Height: 40
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length: 105
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Net weight: 99
Operating voltage: DC
Output function: Analog output voltage
Pressure range: 0...400 bar
Pressure type: Relative pressure
Process connection: G 1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Protection class: IP67
Volume: 315
Volume unit: CMQ
Weight unit: GRM
Width: 75

In Stock
List Price	A$540.08
