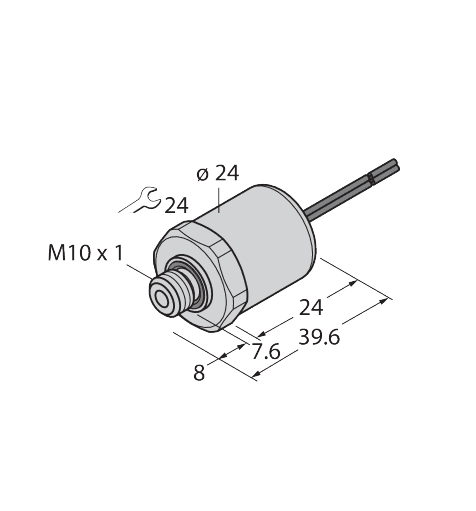

Pressure Transmitter With Current Output (2-Wire)
PT25R-1041-I2-WM0.5/X
Order ID no. 100000886
In Stock
List Price
A$318.50
home
Turck-Shop
Sensors
Pressure Sensors
PT25R-1041-I2-WM0.5/X
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Base unit
PCE
Connector type
Open end
Design
Without display
Dimension unit
MMT
EAN/UPC code
4047101445015
Electrical output
Current output (2-wire)
Electrical connection
Stranded wires
Gross weight
417
Height
50
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length
190
Material pressure transducer
Ceramic Al₂O₃
Media temperature max. (°C)
125
Media temperature min. (°C)
-40
Net weight
417
Operating voltage
DC
Output function
Analog output current
Pressure range
0...25 bar
Pressure type
Relative pressure
Process connection
M10 x 1 DIN 3852-E (rear sealing)
Protection class
IP65
Volume
0.665
Volume unit
DMQ
Weight unit
GRM
Width
70
Key Features
Electrical output
Current output (2-wire)
Process connection
M10 x 1 DIN 3852-E (rear sealing)
