Pressure Transmitter Ratiometric Output (3-Wire)

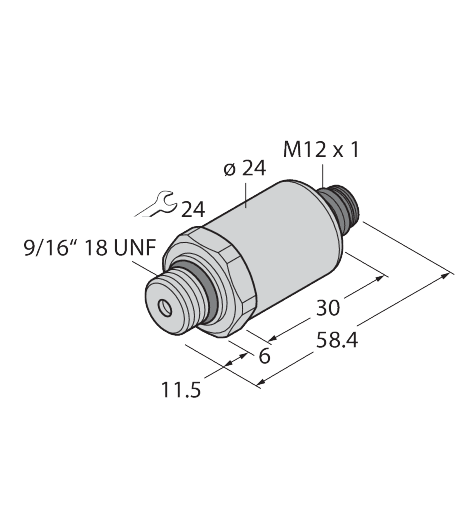

PT500R-2021-U6-H1143/X
Order ID no. 100000856
In Stock
List Price
A$540.08
home
Turck-Shop
Sensors
Pressure Sensors
PT500R-2021-U6-H1143/X
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Base unit
PCE
Connector type
M12 x 1
Design
Without display
Dimension unit
MMT
EAN/UPC code
4047101444285
Electrical output
Voltage output (3-wire)
Electrical connection
Connector
Gross weight
99
Height
45
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Length
100
Material pressure transducer
Stainless steel 1.4435 (AISI 316L)
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Net weight
99
Operating voltage
DC
Output function
ratiom. 10...90%
Pressure range
0...500 bar
Pressure type
Relative pressure
Process connection
9/16″-18 UNF male thread
Protection class
IP67
Volume
315
Volume unit
CMQ
Weight unit
GRM
Width
70
Key Features
Electrical output
Voltage output (3-wire)
Process connection
9/16″-18 UNF male thread
