- Ambient temperature max. (°C)
- 50
- Ambient temperature min. (°C)
- -10
- Base unit
- PCE
- Communication protocol
- IO-Link
- Connector type
- M12 x 1
- Design
- Rectangular with thread

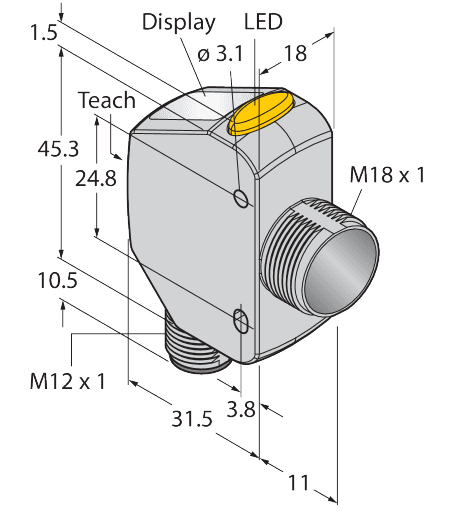

- Dimensions
- 43,5 mm x 18 mm x 57,5 mm
- Dimension unit
- MMT
- Display
- 4-digit 7-segment LED display
- EAN/UPC code
- 662488953010
- Electrical connection
- Connector
- Function
- Proximity switch
- Gross weight
- 159
- Height
- 5
- Housing material
- Metal
- Housing quality
- Stainless steel
- Laser class
- 1
- Length
- 112
- Light type
- Red
- Max. range (mm)
- 300
- Net weight
- 159
- Operating mode
- Background/foreground suppression
- Optical resolution (mm)
- 1
- Output function
- Push-pull, PNP/NPN programmable
- Protection class
- IP67, IP68, IP69
- Special features
- Chemical-resistant, Clear object detection, keep/defer, Resistant to chemicals, Wash down
- Switching element function
- NO/NC
- Volume
- 4.48
- Volume unit
- CMQ
- Wavelength (nm)
- 655
- Weight unit
- GRM
- Width
- 8
