Q3XTBLD-Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

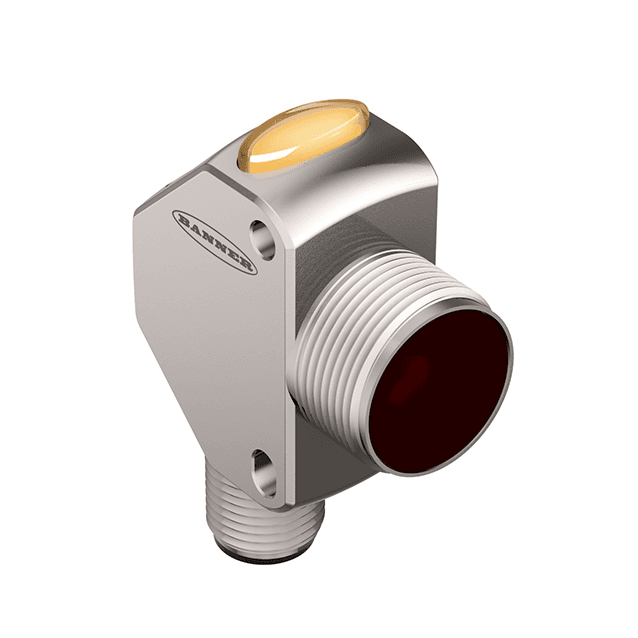

Photoelectric sensor Laser Sensor
Q3XTBLD-Q8
Order ID no. 3091638
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Rectangular with thread

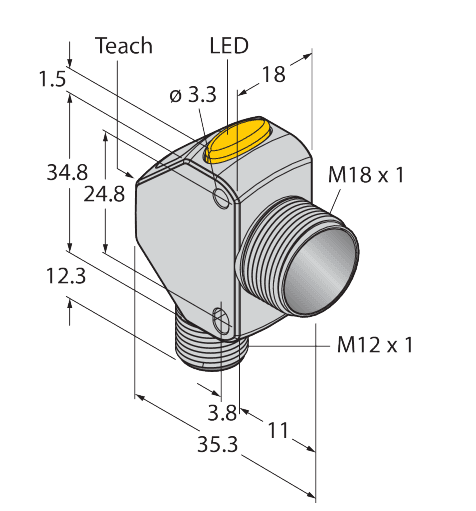

Dimensions
35,3 mm x 18 mm x 48,6 mm
Dimension unit
MMT
Display
3-digit 7-segment LED display
EAN/UPC code
662488916381
Electrical connection
Connector
Function
Proximity switch
Gross weight
108.86
Height
4
Housing material
Metal
Housing quality
Nickel-plated
Housing surface
Galvanized
Laser class
2
Length
112
Light type
Red
Max. range (mm)
300
Net weight
108.86
Operating mode
Diffuse/background suppression
Output function
PNP/NPN
Protection class
IP67, IP68, IP69
Setting option
Push Button, Remote Teach
Special features
keep/defer, Wash down
Switching element function
NO/NC
Volume
3.584
Volume unit
CMQ
Wavelength (nm)
655
Weight unit
GRM
Width
8
home
Turck-Shop
Sensors
Photoelectric Sensors
Q3XTBLD-Q8
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
300
