S18-2VPFF200-Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

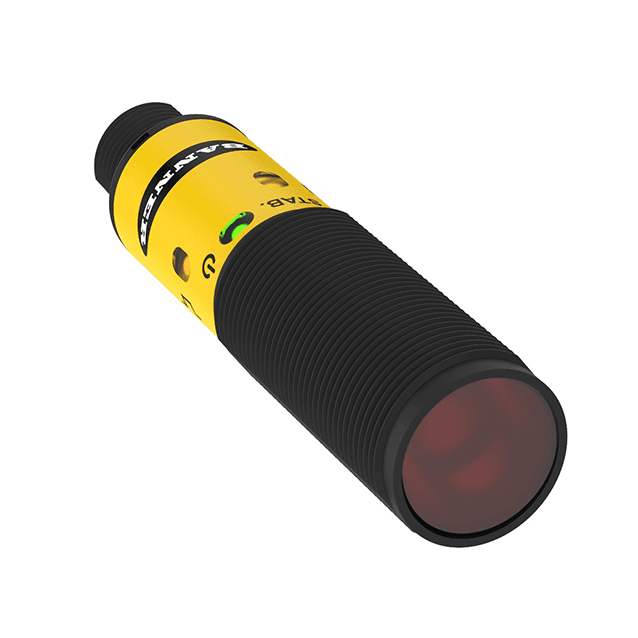

Photoelectric sensor Diffuse-Mode Sensor with Fixed Background Suppression
S18-2VPFF200-Q8
Order ID no. 3091118
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Design
Tube
Dimensions
73 mm
Dimension unit
MMT
EAN/UPC code
662488911188
Electrical connection
Connector
Function
Proximity switch
Gross weight
25
Height
2
Housing diameter (mm)
⌀ 18 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Length
6
Light type
Red
Max. range (mm)
200
Net weight
25
Operating mode
Background suppression, non-adjustable
Output function
PNP
Protection class
IP67
Switching element function
Complementary contact
Volume
0.024
Volume unit
CMQ
Wavelength (nm)
624
Weight unit
GRM
Width
2
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
200
