Photoelectric sensor luminescence sensor
QL56M6XD40BQ
Order ID no. 3081328
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
QL56M6XD40BQ
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Base unit
PCE
Connector type
M12 x 1
Design
Rectangular

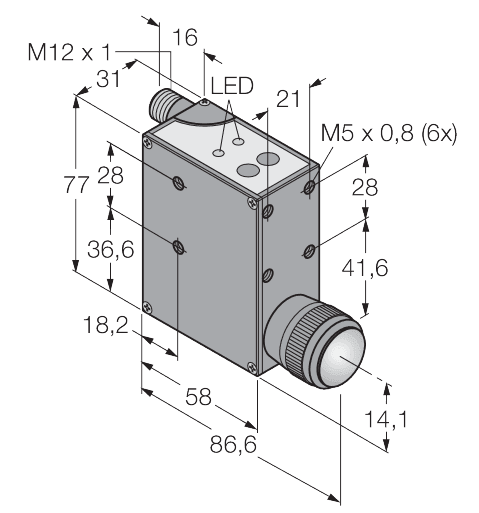

Dimensions
77 mm x 31 mm x 58 mm
Dimension unit
MMT
EAN/UPC code
662488813284
Electrical connection
Connector
Function
Inspection sensor
Gross weight
224.53
Height
70
Housing material
Metal
Housing quality
AL
Length
150
Light type
UV
Max. range (mm)
50
Net weight
224.53
Operating mode
Luminescence sensor
Output function
PNP/Analog output
Protection class
IP67
Setting option
Push Button
Special features
keep/defer
Switching element function
normally open NO
Switching frequency (kHz)
2
Volume
1050
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Light type
UV
Function
Inspection sensor
Output function
PNP/Analog output
Max. range (mm)
50
