Photoelectric sensor Opposed Mode Sensor (Emitter)
QS30EXH2OQ5
Order ID no. 3079166
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30EXH2OQ5
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Design
Rectangular with thread

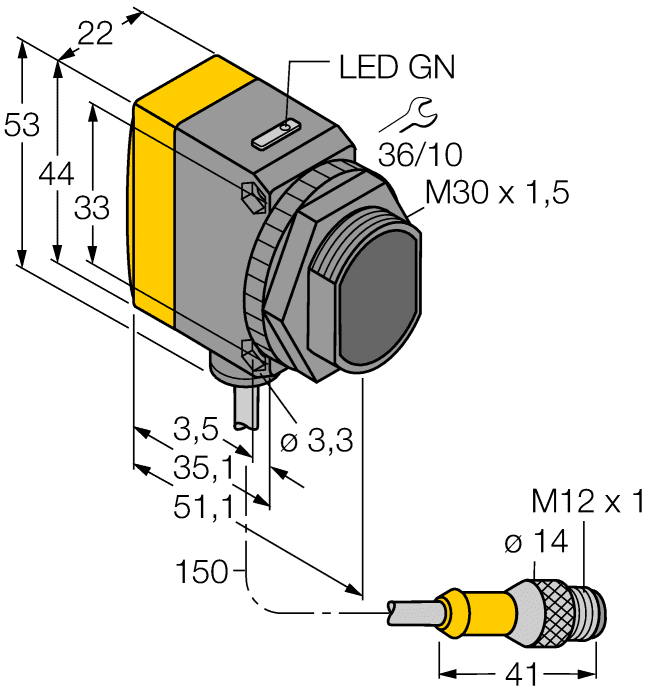

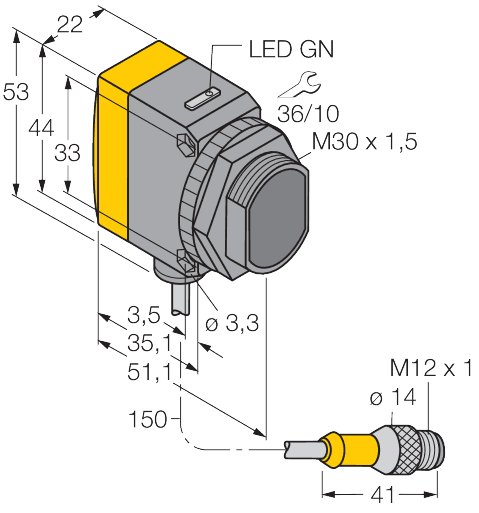

Dimensions
51,5 mm x 22 mm x 57 mm
Dimension unit
MMT
EAN/UPC code
662488791667
Electrical connection
Cable with connector
Function
Opposed mode sensor
Gross weight
90.72
Height
30
Housing diameter (mm)
⌀ 30 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
140
Light type
IR
Max. range (mm)
4000
Net weight
90.72
Operating mode
Emitter
Protection class
IP67
Special features
Encapsulated, Water detection
Volume
378
Volume unit
CMQ
Wavelength (nm)
1450
Weight unit
GRM
Width
90
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
4000
List Price
A$434.73
Item Total
A$434.73
