M12NFF75 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

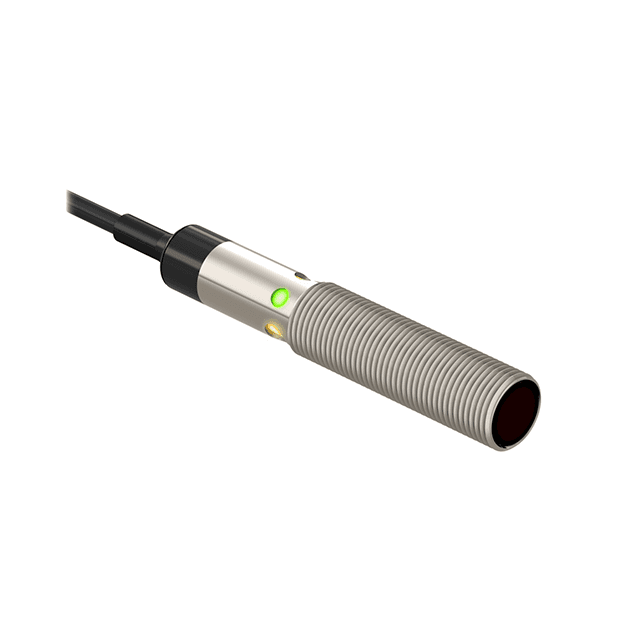

Photoelectric sensor Diffuse-Mode Sensor with Fixed Background Suppression
M12NFF75
Order ID no. 3078230
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
2
Design
Tube

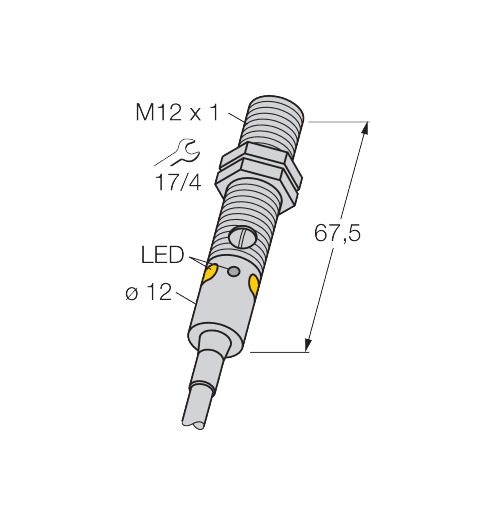

Dimensions
67,5 mm
Dimension unit
MMT
EAN/UPC code
662488782306
Electrical connection
Cable
Function
Proximity switch
Gross weight
68
Height
0
Housing diameter (mm)
⌀ 12 mm
Housing material
Metal
Housing quality
Nickel-plated brass
Housing surface
Nickel Plated
Length
0
Light type
Red
Max. range (mm)
75
Net weight
68
Operating mode
Background suppression, non-adjustable
Output function
NPN
Protection class
IP67, IP68
Special features
Encapsulated, Wash down
Switching element function
Complementary contact
Volume
0
Wavelength (nm)
680
Weight unit
GRM
Width
0
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
M12NFF75
Light type
Red
Function
Proximity switch
Output function
NPN
Max. range (mm)
75
In Stock
List Price
A$349.74
Item Total
A$349.74
