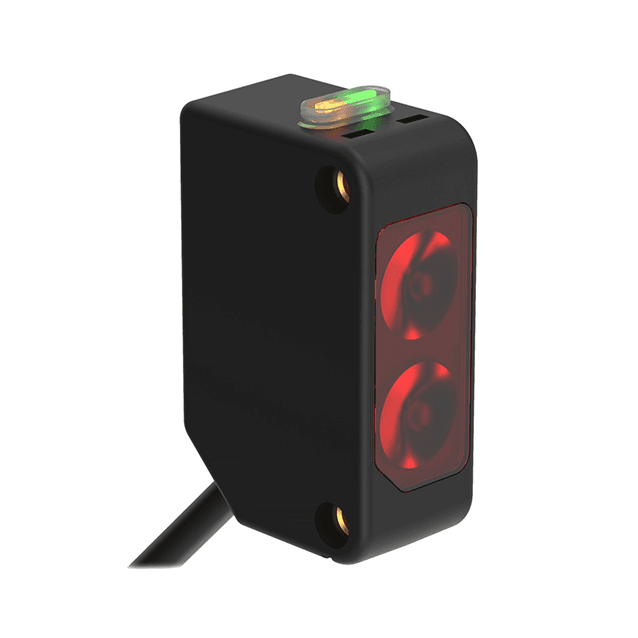

Photoelectric sensor Opposed Mode Sensor (Emitter)
Q20ELQ5
Order ID no. 3078206
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
Q20ELQ5
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Design
Rectangular

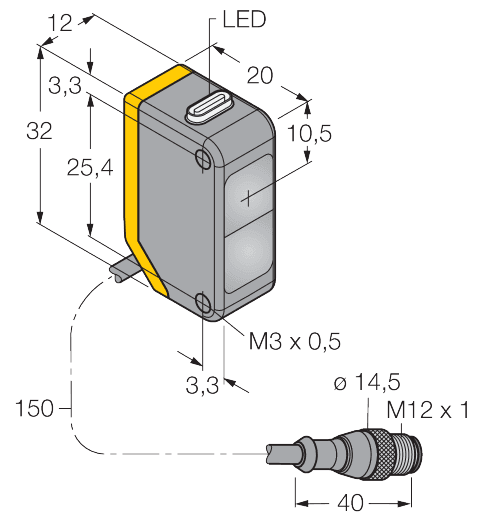

Dimensions
20 mm x 12 mm x 32 mm
Dimension unit
MMT
EAN/UPC code
662488782061
Electrical connection
Cable with connector
Function
Opposed mode sensor
Gross weight
28
Height
100
Housing material
Plastic
Housing quality
Thermoplastic material
Length
130
Light type
IR
Max. range (mm)
20000
Net weight
28
Operating mode
Emitter
Protection class
IP67
Volume
1300
Volume unit
CMQ
Wavelength (nm)
850
Weight unit
GRM
Width
100
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
20000
List Price
A$158.10
Item Total
A$158.10
