QS30LVQPMA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

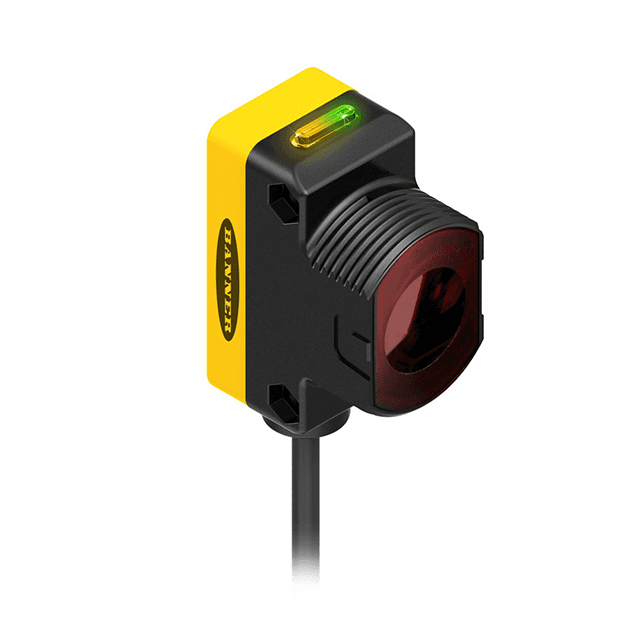

Photoelectric sensor Retroreflective Sensor
QS30LVQPMA
Order ID no. 3073232
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

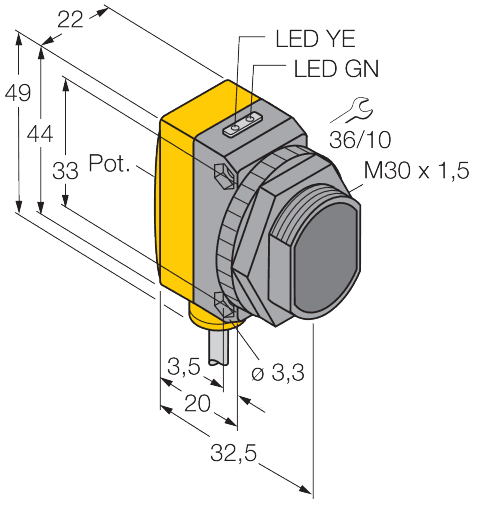

Dimensions
35 mm x 22 mm x 49 mm
Dimension unit
MMT
EAN/UPC code
662488732325
Electrical connection
Cable with connector
Function
Retroreflective Sensor
Gross weight
68
Height
0
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
0
Light type
Red
Max. range (mm)
12000
Net weight
68
Operating mode
Unpolarized
Output function
PNP/NPN
Protection class
IP67
Setting option
Potentiometer
Switching element function
normally open NO
Volume
0
Wavelength (nm)
630
Weight unit
GRM
Width
0
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30LVQPMA
Key Features
Light type
Red
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
12000
In Stock
List Price
A$297.65
Item Total
A$297.65
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
