QS18VN6LDQ8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

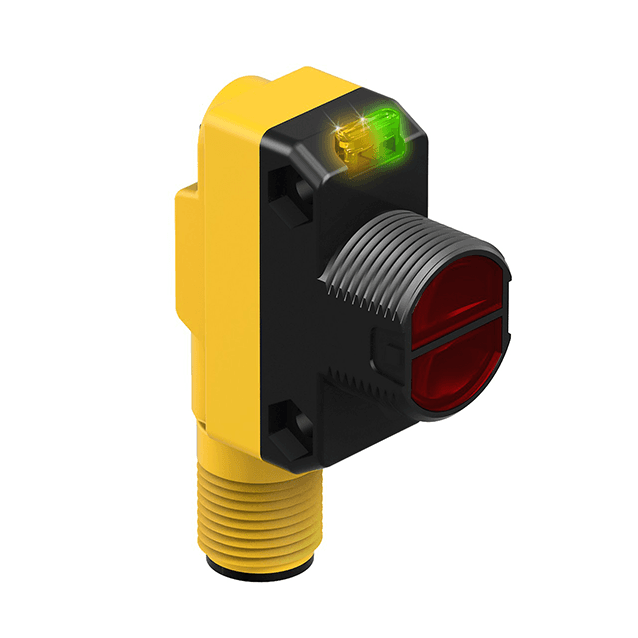

Photoelectric sensor Laser sensor, diffuse mode
QS18VN6LDQ8
Order ID no. 3073039
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Rectangular with thread

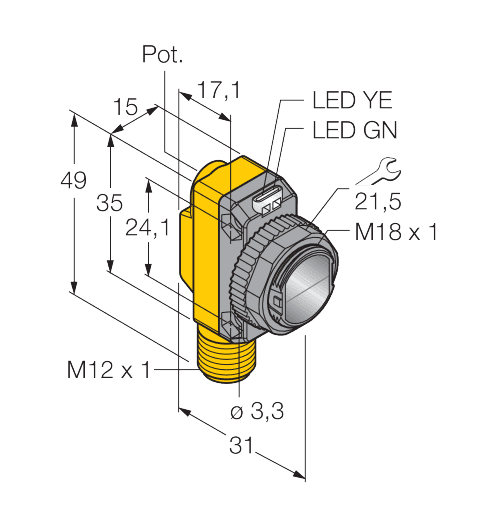

Dimensions
31 mm x 15 mm x 35 mm
Dimension unit
MMT
EAN/UPC code
662488730390
Electrical connection
Connector
Function
Proximity switch
Gross weight
45.36
Height
30
Housing material
Plastic
Housing quality
ABS
Laser class
1
Length
140
Light type
Red
Max. range (mm)
300
Net weight
45.36
Operating mode
Diffuse
Output function
NPN
Protection class
IP67
Setting option
Potentiometer
Special features
Laser
Switching element function
NO/NC
Volume
378
Volume unit
CMQ
Wavelength (nm)
650
Weight unit
GRM
Width
90
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18VN6LDQ8
Light type
Red
Function
Proximity switch
Output function
NPN
Max. range (mm)
300
In Stock
List Price
A$373.70
Item Total
A$373.70
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
