MAR2416NX485Q | TURCK - Your Global Automation Partner

MAR2416NX485Q

MAR2416NX485Q

Thumbnail for MAR2416NX485Q

Thumbnail for MAR2416NX485Q

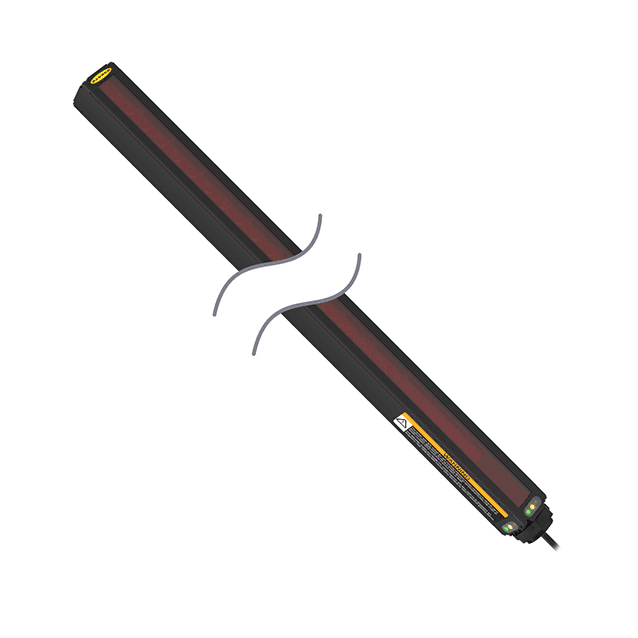

EZ-Array Measuring Light Screen Receiver

MAR2416NX485Q

Order ID no. 3072193

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Approvals: CE, cULus recognized
Base unit: PCE
Cable length (m): 0.15
Communication protocol: RS485
Connector type: M12 x 1
Design: Rectangular

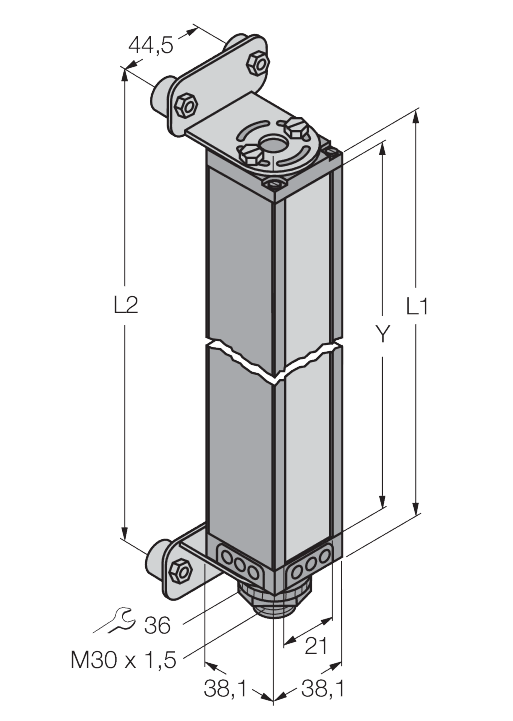

Dimensions: 38,1 mm x 38,1 mm x 689 mm
Dimension unit: MMT
EAN/UPC code: 662488721930
Electrical connection: Cable with connector
Function: Light curtain
Gross weight: 1358
Height: 50
Housing material: Metal
Housing quality: AL
Length: 920
Light type: IR
Max. range (mm): 16500
Net weight: 1358
Number of beams: 32
Operating mode: Receiver
Optical resolution (mm): 9.5
Output function: PNP/NPN
Protection class: IP65
Scan field (mm): 600
Switching element function: 2 x NO contact
Volume: 2530
Volume unit: CMQ
Weight unit: GRM
Width: 55

homeTurck-Shop
Sensors
Photoelectric Sensors
MAR2416NX485Q

Key Features

Light type: IR
Function: Light curtain
Output function: PNP/NPN
Max. range (mm): 16500

In Stock
