Q12AB6FF15Q | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric sensor Diffuse-Mode Sensor with Fixed Background Suppression
Q12AB6FF15Q
Order ID no. 3072105
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
M8 x 1
Design
Rectangular

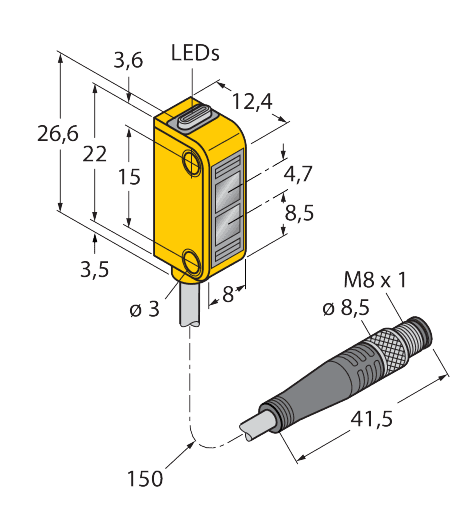

Dimensions
12,4 mm x 8 mm x 26,6 mm
Dimension unit
MMT
EAN/UPC code
662488721053
Electrical connection
Cable with connector
Function
Proximity switch
Gross weight
17
Height
10
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
150
Light type
Red
Max. range (mm)
15
Net weight
17
Operating mode
Background suppression, non-adjustable
Output function
PNP/NPN
Protection class
IP67
Switching element function
NO contact, light operation
Volume
165
Volume unit
CMQ
Wavelength (nm)
640
Weight unit
GRM
Width
110
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
15
home
Turck-Shop
Sensors
Photoelectric Sensors
Q12AB6FF15Q
In Stock
List Price
A$282.66
Item Total
A$282.66
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
