QS30AFQPMA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

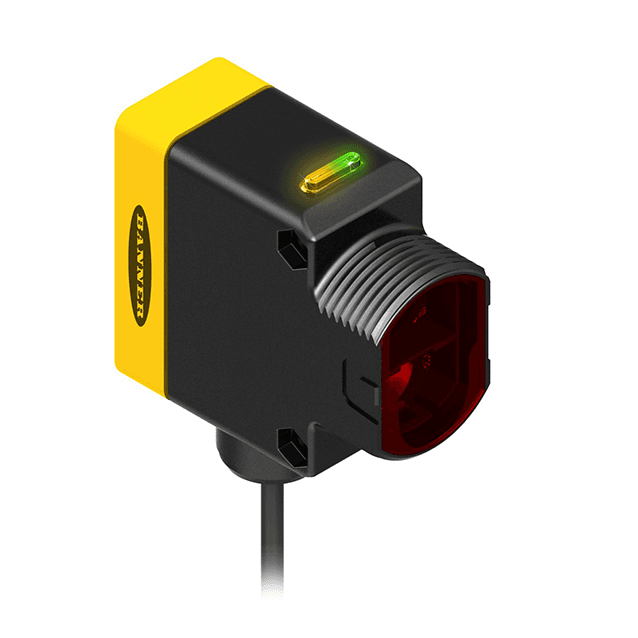

Photoelectric sensor Diffuse-Mode Sensor with Adjustable Background Suppression
QS30AFQPMA
Order ID no. 3072101
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

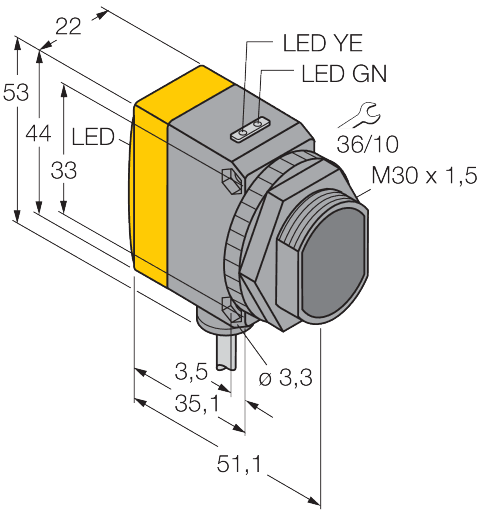

Dimensions
35 mm x 22 mm x 53 mm
Dimension unit
MMT
EAN/UPC code
662488721015
Electrical connection
Cable with connector
Function
Proximity switch
Gross weight
82
Height
35
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
150
Light type
Red
Max. range (mm)
300
Net weight
82
Operating mode
Background suppression, adjustable
Output function
PNP/NPN
Protection class
IP67
Setting option
Push Button, Remote Teach
Special features
keep/defer
Switching element function
normally open NO
Volume
0.499
Volume unit
DMQ
Wavelength (nm)
660
Weight unit
GRM
Width
95
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30AFQPMA
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
300
In Stock
List Price
A$450.40
Item Total
A$450.40
