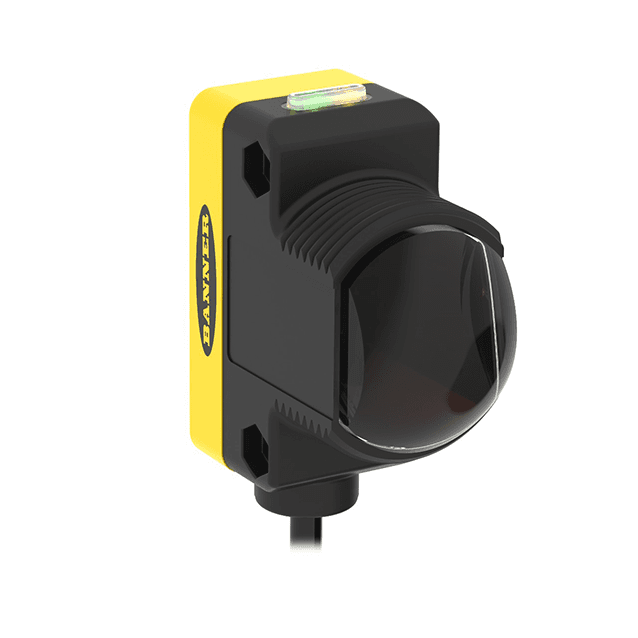

Photoelectric sensor Diffuse-Mode Sensor
QS30LDQPMA
Order ID no. 3072100
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Rectangular with thread

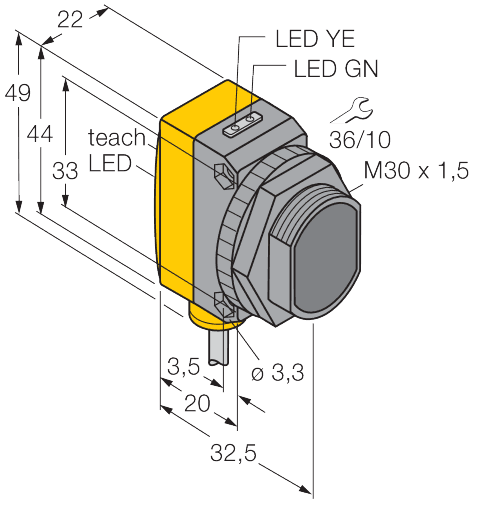

Dimensions
35 mm x 22 mm x 49 mm
Dimension unit
MMT
EAN/UPC code
662488721008
Electrical connection
Cable with connector
Function
Proximity switch
Gross weight
92
Height
50
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Laser class
2
Length
125
Light type
Red
Max. range (mm)
400
Net weight
92
Operating mode
Diffuse
Output function
PNP/NPN
Protection class
IP67
Setting option
Push Button, Remote Teach
Special features
keep/defer
Switching element function
normally open NO
Volume
0.531
Volume unit
DMQ
Wavelength (nm)
650
Weight unit
GRM
Width
85
home
Turck-Shop
Sensors
Photoelectric Sensors
QS30LDQPMA
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
400
In Stock
List Price
A$534.60
Item Total
A$534.60
