Photoelectric sensor Switching Light Screen
LX18RQ
Order ID no. 3071813
In Stock
List Price
A$2,074.46
home
Turck-Shop
Sensors
Photoelectric Sensors
LX18RQ
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.2
Connector type
M12 x 1
Design
Rectangular

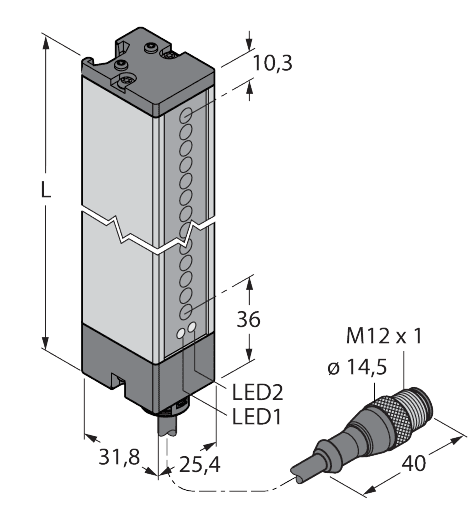

Dimensions
31,8 mm x 25,4 mm x 494,4 mm
Dimension unit
MMT
EAN/UPC code
662488718138
Electrical connection
Cable with connector
Function
Light curtain
Gross weight
615
Height
35
Housing material
Metal
Housing quality
AL
Housing surface
Grey
Length
900
Max. range (mm)
2000
Net weight
615
Operating mode
Receiver
Optical resolution (mm)
9.5
Output function
PNP/NPN
Protection class
IP65
Scan field (mm)
447
Switching element function
normally open NO
Volume
1260
Volume unit
CMQ
Weight unit
GRM
Width
40
Key Features
Function
Light curtain
Output function
PNP/NPN
Max. range (mm)
2000
