QS18VP6FF50Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric sensor Diffuse-Mode Sensor with Fixed Background Suppression
QS18VP6FF50Q8
Order ID no. 3071755
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Connector type
M12 x 1
Design
Rectangular with thread

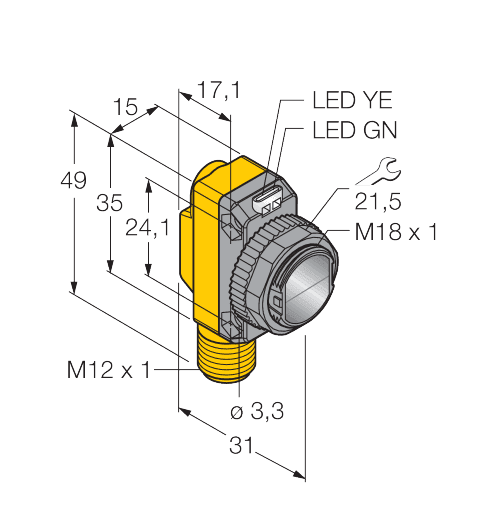

Dimensions
31 mm x 15 mm x 35 mm
Dimension unit
MMT
EAN/UPC code
662488717551
Electrical connection
Connector
Function
Proximity switch
Gross weight
22.23
Height
30
Housing diameter (mm)
⌀ 18 mm
Housing material
Plastic
Housing quality
ABS
Length
140
Light type
Red
Max. range (mm)
50
Net weight
22.23
Operating mode
Background suppression, non-adjustable
Output function
PNP
Protection class
IP67
Switching element function
NO/NC
Volume
378
Volume unit
CMQ
Wavelength (nm)
630
Weight unit
GRM
Width
90
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18VP6FF50Q8
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
50
In Stock
List Price
A$153.79
Item Total
A$153.79
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
