QS18VN6CV45Q5 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric sensor Convergent mode sensor
QS18VN6CV45Q5
Order ID no. 3064588
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Rectangular with thread

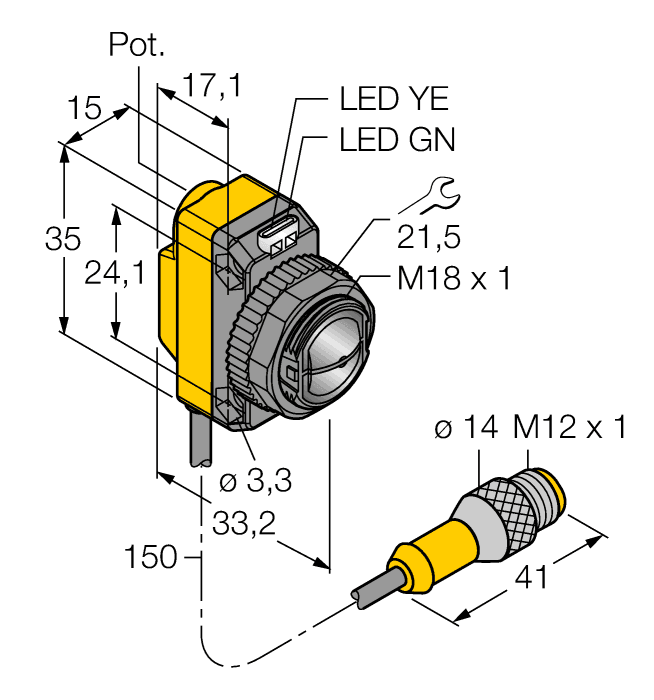

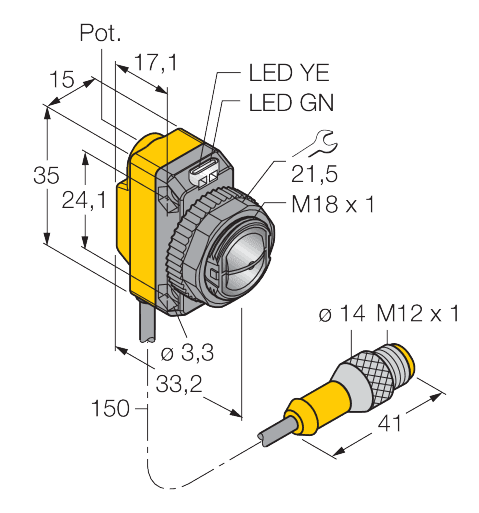

Dimensions
33,2 mm x 15 mm x 35 mm
Dimension unit
MMT
EAN/UPC code
662488645885
Electrical connection
Cable with connector
Focal distance (mm)
43
Function
Proximity switch
Gross weight
63
Height
0
Housing material
Plastic
Housing quality
ABS
Length
0
Light type
Red
Max. range (mm)
43
Net weight
63
Operating mode
Convergent
Output function
NPN
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO/NC
Volume
0
Wavelength (nm)
630
Weight unit
GRM
Width
0
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18VN6CV45Q5
Light type
Red
Function
Proximity switch
Output function
NPN
Max. range (mm)
43
In Stock
List Price
A$263.50
Item Total
A$263.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
