Photoelectric sensor Convergent mode sensor
VS1RP5C10
Order ID no. 3055296
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
VS1RP5C10
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
2
Design
Rectangular

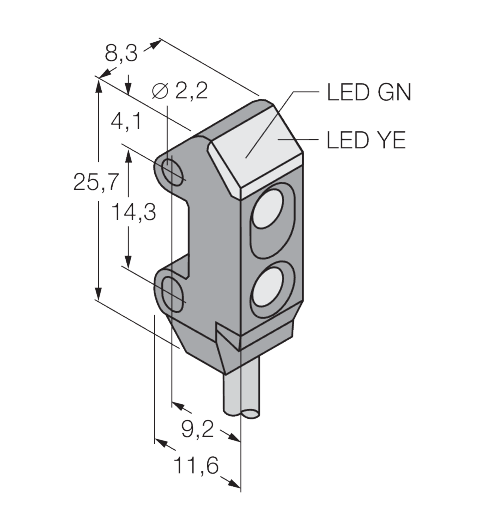

Dimensions
11,6 mm x 8,3 mm x 25,7 mm
Dimension unit
MMT
EAN/UPC code
662488552961
Electrical connection
Cable
Focal distance (mm)
10
Function
Proximity switch
Gross weight
54
Height
30
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Black
Length
140
Light type
IR
Max. range (mm)
10
Net weight
54
Operating mode
Convergent
Output function
PNP
Protection class
IP54
Switching element function
normally open NO
Volume
378
Volume unit
CMQ
Wavelength (nm)
865
Weight unit
GRM
Width
90
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
10
Quantity
−
+
