Q10AP6RQ | TURCK - Your Global Automation Partner
Photoelectric sensor Opposed Mode Sensor (Receiver)
Q10AP6RQ
Order ID no. 3044753
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M8 x 1
Design
Rectangular

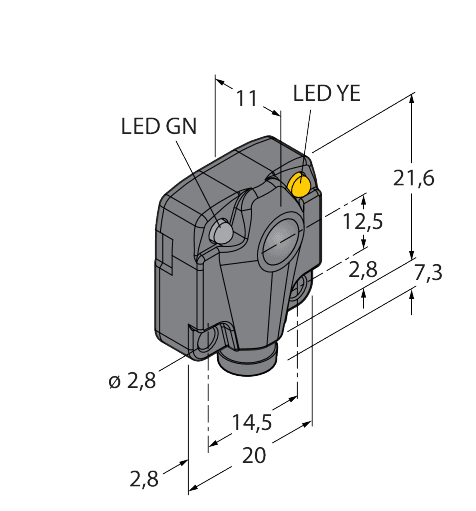

Dimensions
28,9 mm x 20 mm x 10 mm
Dimension unit
MMT
EAN/UPC code
662488447533
Electrical connection
Connector
Function
Opposed mode sensor
Gross weight
33
Height
40
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Black
Length
90
Light type
IR
Max. range (mm)
1800
Net weight
33
Operating mode
Receiver
Output function
PNP
Protection class
IP67
Switching element function
NO contact, light operation
Switching frequency (kHz)
0.083
Volume
180
Volume unit
CMQ
Wavelength (nm)
880
Weight unit
GRM
Width
50
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
Q10AP6RQ
Light type
IR
Function
Opposed mode sensor
Output function
PNP
Max. range (mm)
1800
In Stock
List Price
A$194.77
Item Total
A$194.77
