SM31REQD | TURCK - Your Global Automation Partner
Photoelectric sensor Opposed Mode Sensor (Receiver)
SM31REQD
Order ID no. 3037122
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Connector type
M12 x 1
Design
Rectangular with thread

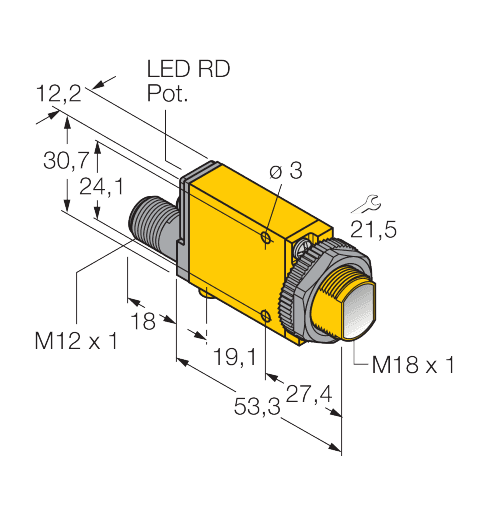

Dimensions
71,3 mm x 12,3 mm x 30,7 mm
Dimension unit
MMT
EAN/UPC code
662488371227
Electrical connection
Connector
Function
Opposed mode sensor
Gross weight
186
Height
60
Housing diameter (mm)
⌀ 18 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
150
Max. range (mm)
3000
Net weight
186
Operating mode
Emitter/receiver pair
Output function
PNP/NPN
Protection class
IP67
Setting option
Potentiometer
Special features
Encapsulated
Switching element function
normally open NO
Volume
0.81
Volume unit
DMQ
Weight unit
GRM
Width
90
Key Features
Function
Opposed mode sensor
Output function
PNP/NPN
Max. range (mm)
3000
In Stock
List Price
A$477.30
home
Turck-Shop
Sensors
Photoelectric Sensors
SM31REQD
Item Total
A$477.30
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
