Photoelectric sensor Diffuse-Mode Sensor
T18AW3DQ3
Order ID no. 3036921
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Tube

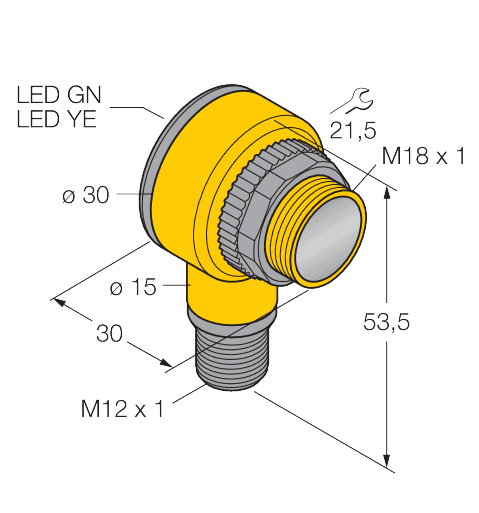

Dimensions
30 mm x 30 mm x 54 mm
Dimension unit
MMT
EAN/UPC code
662488369217
Electrical connection
Connector
Function
Proximity switch
Gross weight
53
Height
50
Housing material
Plastic
Housing quality
Thermoplastic material
Length
90
Light type
IR
Max. range (mm)
300
Net weight
53
Operating mode
Diffuse
Output function
Relay output
Protection class
IP67, IP69
Setting option
Potentiometer
Special features
Chemical-resistant, Encapsulated, Wash down
Switching element function
Light operation
Volume
202.5
Volume unit
CMQ
Wavelength (nm)
880
Weight unit
GRM
Width
45
home
Turck-Shop
Sensors
Photoelectric Sensors
T18AW3DQ3
Key Features
Light type
IR
Function
Proximity switch
Output function
Relay output
Max. range (mm)
300
In Stock
List Price
A$297.04
Item Total
A$297.04
