S18RW3DQ3 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

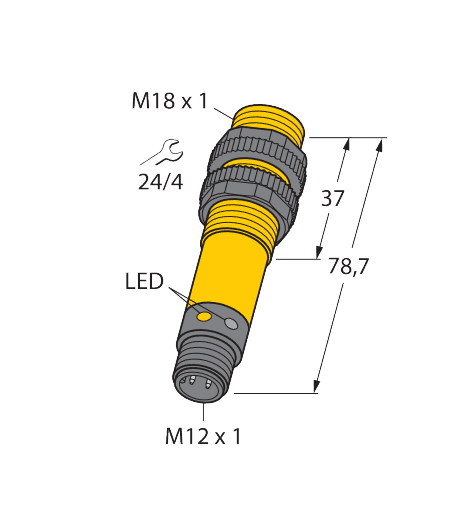

Photoelectric sensor Diffuse-Mode Sensor
S18RW3DQ3
Order ID no. 3036874
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Tube
Dimensions
78,7 mm
Dimension unit
MMT
EAN/UPC code
662488368746
Electrical connection
Connector
Function
Proximity switch
Gross weight
61
Height
0
Housing material
Plastic
Housing quality
Thermoplastic material
Length
0
Light type
IR
Max. range (mm)
100
Net weight
61
Operating mode
Diffuse
Output function
Relay output
Protection class
IP67, IP69
Special features
Encapsulated, Wash down
Switching element function
Dark operation
Volume
0
Wavelength (nm)
880
Weight unit
GRM
Width
0
Key Features
home
Turck-Shop
Sensors
Photoelectric Sensors
S18RW3DQ3
Light type
IR
Function
Proximity switch
Output function
Relay output
Max. range (mm)
100
In Stock
