Q40SP6RQ | TURCK - Your Global Automation Partner
Photoelectric sensor Opposed Mode Sensor (Receiver)
Q40SP6RQ
Order ID no. 3033400
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Design
Rectangular

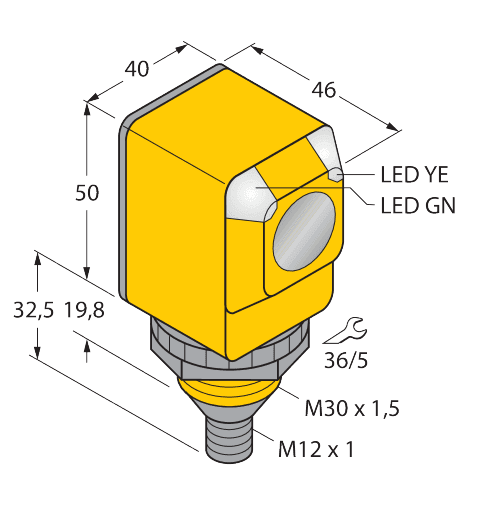

Dimensions
46 mm x 40,1 mm x 82,5 mm
Dimension unit
MMT
EAN/UPC code
662488334000
Electrical connection
Connector
Function
Opposed mode sensor
Gross weight
160.12
Height
50
Housing diameter (mm)
⌀ 30 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Length
130
Max. range (mm)
60000
Net weight
160.12
Operating mode
Receiver
Output function
PNP
Protection class
IP67, IP69
Special features
Encapsulated, Wash down
Switching element function
Connection programmable
Volume
585
Volume unit
CMQ
Weight unit
GRM
Width
90
Key Features
Function
Opposed mode sensor
Output function
PNP
Max. range (mm)
60000
home
Turck-Shop
Sensors
Photoelectric Sensors
Q40SP6RQ
In Stock
List Price
A$263.50
Item Total
A$263.50
