LX12ESR | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric sensor Switching Light Screen
LX12ESR
Order ID no. 3002683
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
2
Design
Rectangular
Dimensions

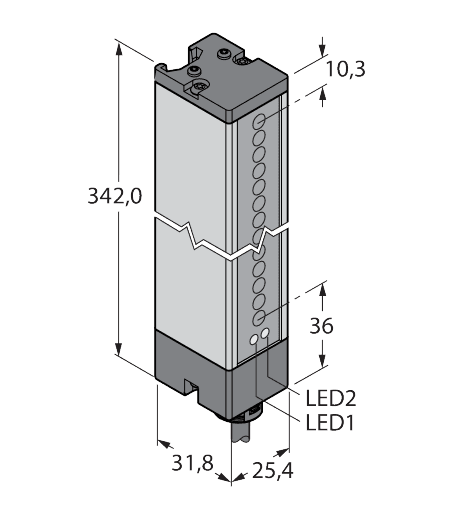

31,8 mm x 25,4 mm x 342 mm
Dimension unit
MMT
EAN/UPC code
662488026837
Electrical connection
Cable
Function
Light curtain
Gross weight
525
Height
30
Housing material
Metal
Housing quality
AL
Housing surface
Grey
Length
390
Light type
IR
Max. range (mm)
200
Net weight
525
Operating mode
Emitter
Optical resolution (mm)
5.6
Protection class
IP65
Scan field (mm)
295
Volume
819
Volume unit
CMQ
Wavelength (nm)
880
Weight unit
GRM
Width
70
home
Turck-Shop
Sensors
Photoelectric Sensors
LX12ESR
Key Features
Light type
IR
Function
Light curtain
Max. range (mm)
200
