Magnetic Field Sensor

BIM-NST-AP6X-V1131

Order ID no. 4685800

In Stock
List Price	A$225.44

Item TotalA$225.44

Quantity

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type: M8 × 1

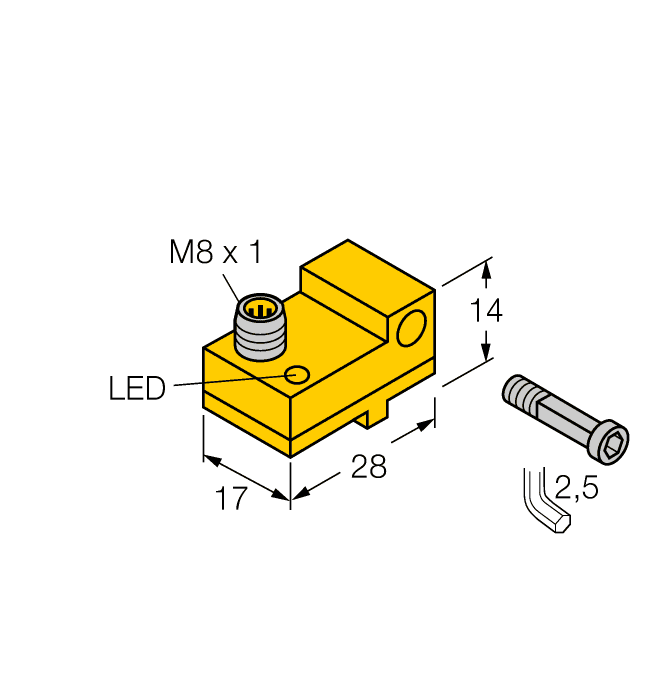

Construction size: 28 x 17 x 14 mm
Cylindrical design: Dovetail cylinder, grooved, Profile cylinder, T-groove cylinder
Design: Rectangular
Electrical connection: Connector
Housing material: Plastic
Housing quality: PA12-GF30
Operating voltage: DC
Output function: PNP
Protection class: IP67
Switching element function: NO contact

Electrical connection: Connector
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Output function: PNP
