Magnetic Field Sensor

BIM-IKM-AP6X2-H1141/S34

Order ID no. 46272

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type: M12 × 1

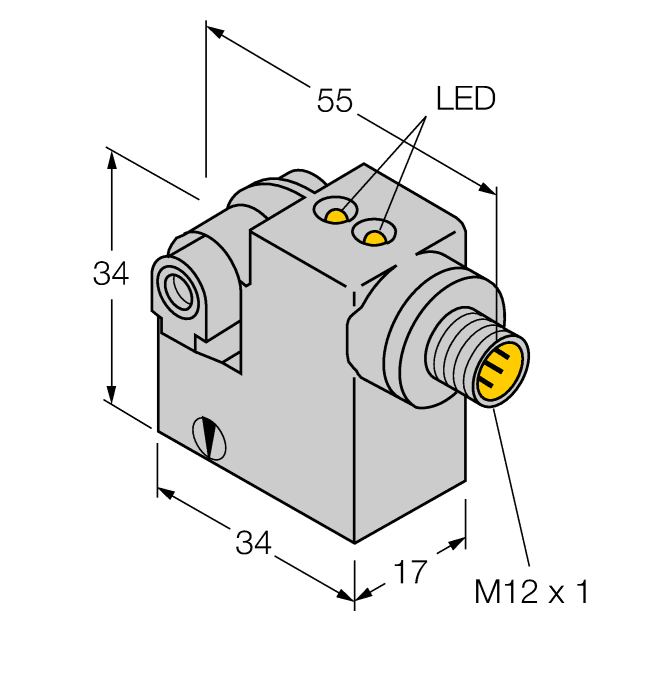

Construction size: 34 x 17 x 34 mm
Cylindrical design: Dovetail cylinder, external groove, Profile cylinder, Tie-rod cylinder
Design: Rectangular
Electrical connection: Connector
Housing material: Metal
Housing quality: GD-Zn
Operating voltage: DC
Output function: PNP
Protection class: IP67
Switching element function: NO contact

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP

In Stock
List Price	A$411.00
