LI300P1-Q17LM1-LIU5X2-0.3-RS5 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

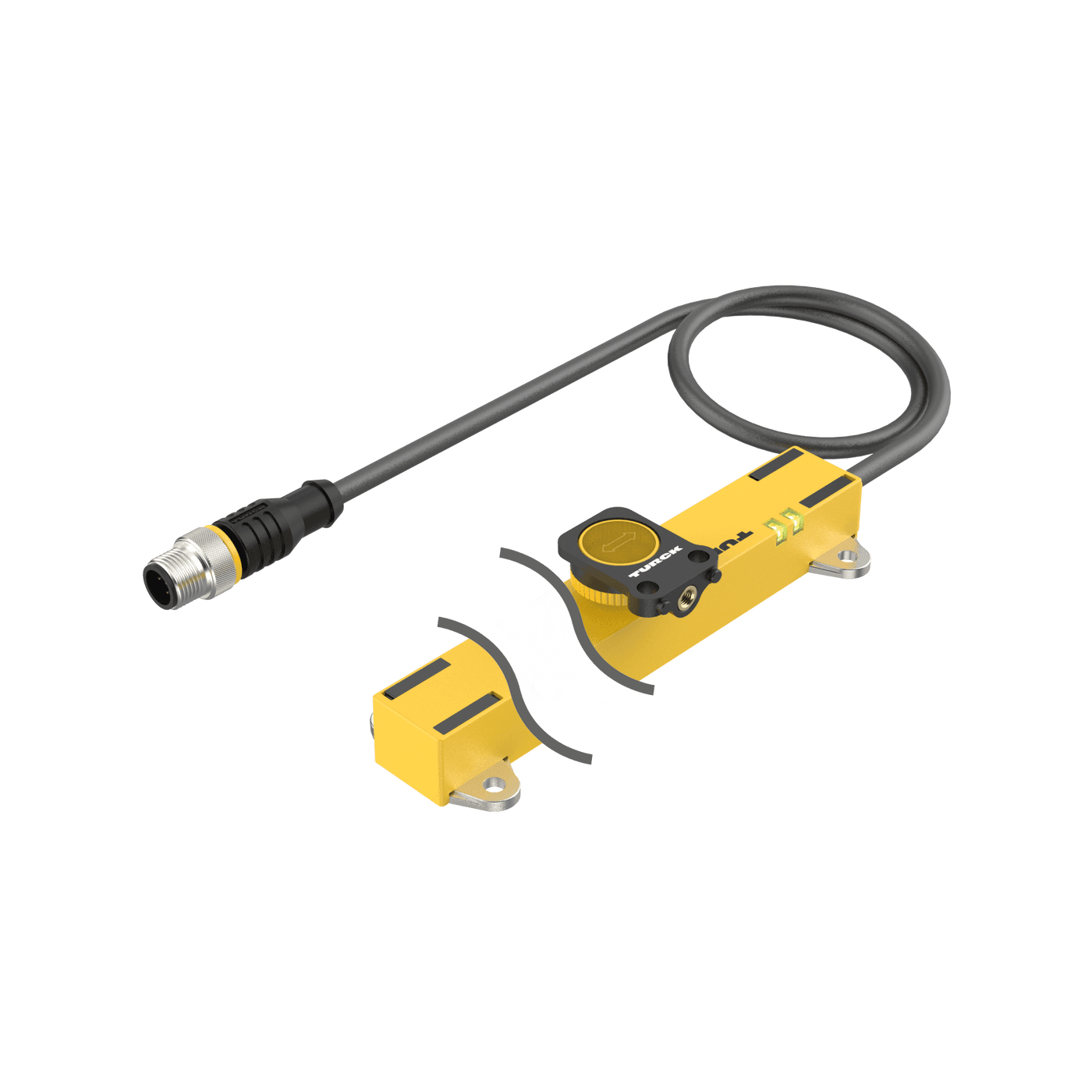

Inductive linear position sensor
LI300P1-Q17LM1-LIU5X2-0.3-RS5
Order ID no. 1590756
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Cable color
Black
Cable length (m)
0.3
Connector type
M12 x 1
Design
Profile

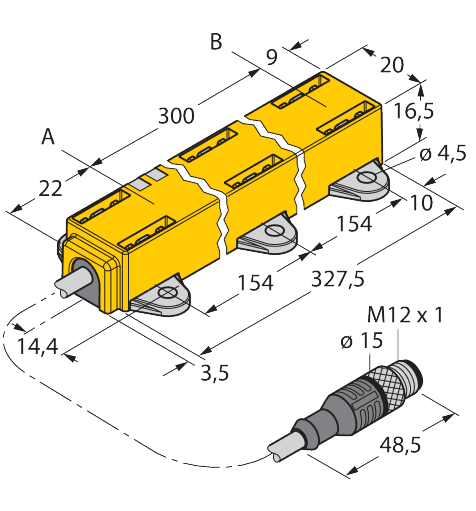

Dimensions
331 mm x 20 mm x 16,5 mm
Dimension unit
MMT
EAN/UPC code
4047101273830
Electrical connection
Cable with connector
Gross weight
218
Height
50
Housing material
Plastic
Housing quality
PC-GF10
Length
330
Measuring principle
Inductive
Measuring range (mm)
300
Net weight
218
Operating voltage
DC
Output function
Analog output
Protection class
IP67
Resolution
0.073 mm
Volume
2640
Volume unit
CMQ
Weight unit
GRM
Width
160
home
Turck-Shop
Sensors
Linear Position Sensors
LI300P1-Q17LM1-LIU5X2-0.3-RS5
Key Features
Electrical connection
Cable with connector
Measuring range (mm)
300
Output function
Analog output
In Stock
List Price
A$762.10
Item Total
A$762.10
