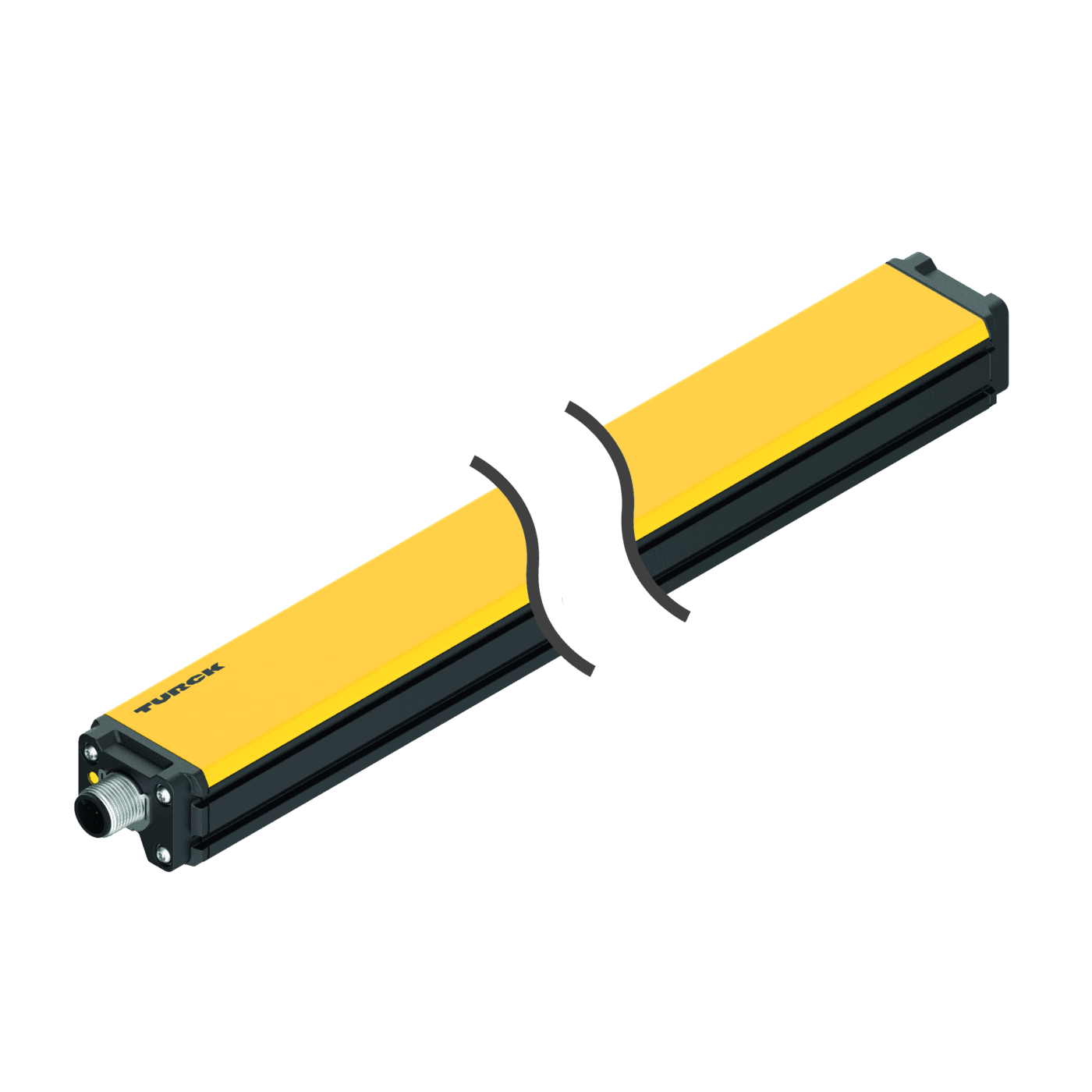

Inductive linear position sensor
LI300P0-Q25LM0-ESG25X3-H1181
Order ID no. 1590011
In Stock
home
Turck-Shop
Sensors
Linear Position Sensors
LI300P0-Q25LM0-ESG25X3-H1181
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Communication protocol
SSi
Connector type
M12 x 1
Design
Profile

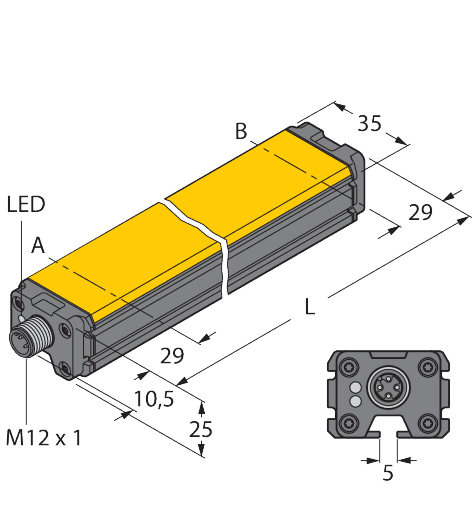

Dimensions
358 mm x 35 mm x 25 mm
Dimension unit
MMT
EAN/UPC code
4047101227239
Electrical connection
Connector
Gross weight
570
Height
80
Housing material
Aluminum/plastic
Housing quality
PA6-GF30
Housing surface
Anodized
Length
550
Measuring principle
Inductive
Measuring range (mm)
300
Net weight
570
Operating voltage
DC
Protection class
IP67
Quality active face
PA6-GF30
Resolution
0.001 mm
Volume
3520
Volume unit
CMQ
Weight unit
GRM
Width
80
Key Features
Communication protocol
SSi
Electrical connection
Connector
Measuring range (mm)
300
List Price
A$1,203.91
Item Total
A$1,203.91
