LTX1550M-F10-LI0-X3-H1151 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

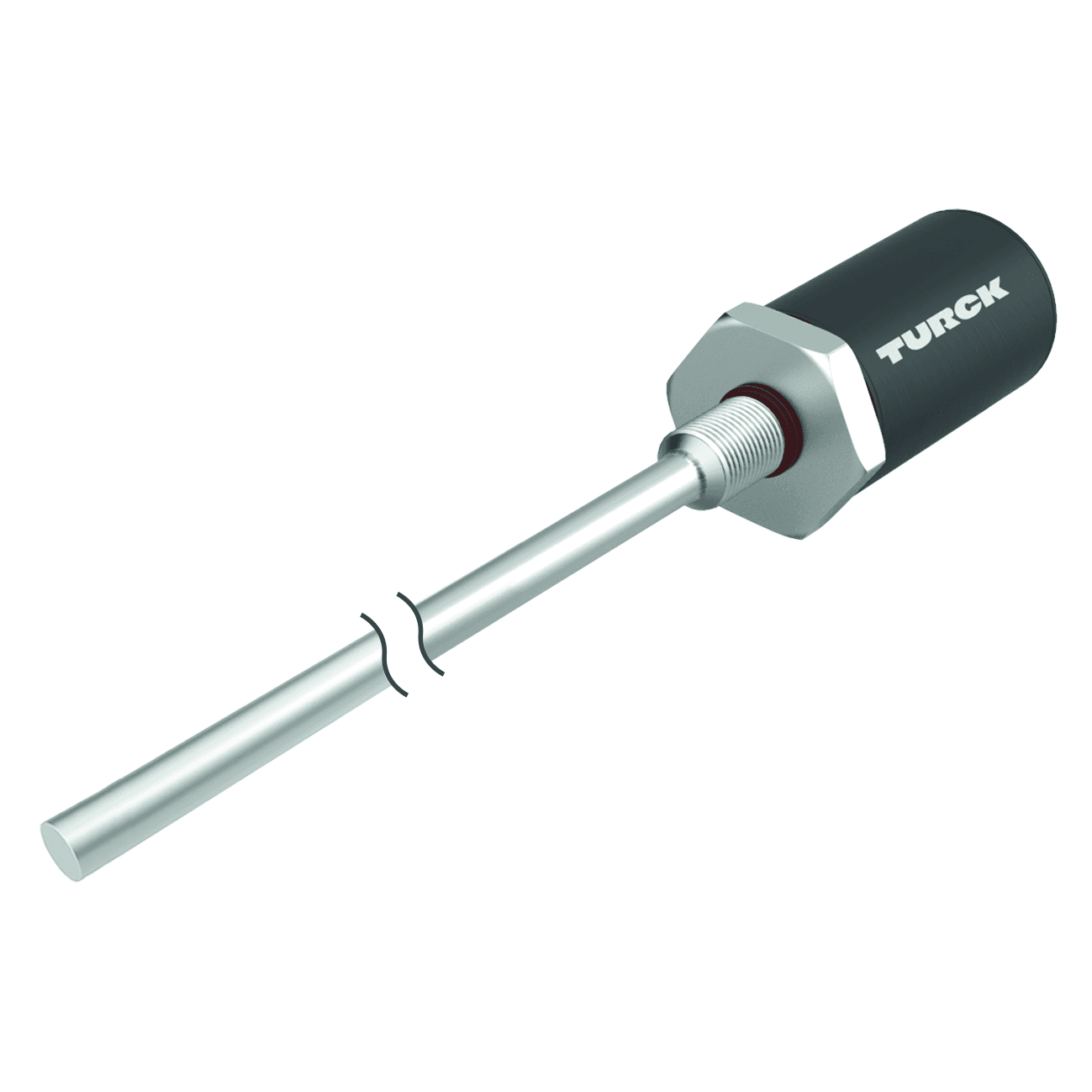

Pressure-resistant Linear Position Sensor Analog
LTX1550M-F10-LI0-X3-H1151
Order ID no. 1540312
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Design
Rod
Detection type
medium contact

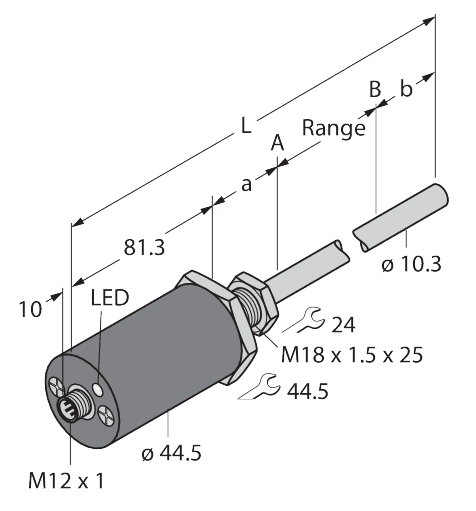

Dimensions
1745,6 mm
Dimension unit
MMT
EAN/UPC code
4047101405736
Electrical connection
Connector
Function
Continuous level measurement
Gross weight
1
Height
0
Housing material
Metal
Housing quality
AL
Length
0
Materials (contact with media)
Stainless steel
Measuring principle
Magnetostrictive
Measuring range (mm)
1550
Medium
liquids
Net weight
1
Operating voltage
DC
Output function
Analog output
Protection class
IP68
Quality active face
1.4404 (AISI 316L)
Volume
0
Weight unit
GRM
Width
0
Key Features
Electrical connection
Connector
Measuring range (mm)
1550
Output function
Analog output
In Stock
List Price
A$3,869.13
