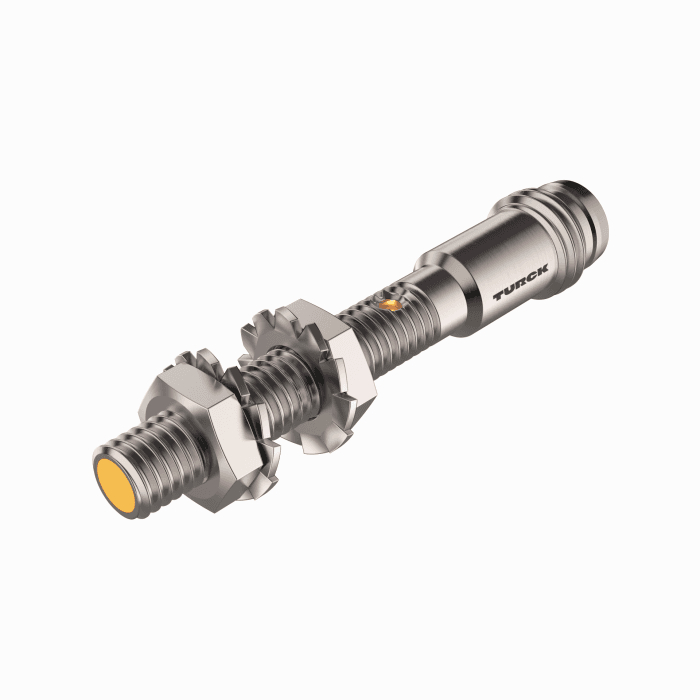

Inductive Sensor
BI1-EG05-AP6X-V1331
Order ID no. 4608640
home
Home
Loading...
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Connector type
M8 x 1
Design
Threaded barrel
Dimension unit
MMT
EAN/UPC code
4047101154177
Electrical connection
Connector
Gross weight
10
Height
10
Housing diameter (mm)
⌀ 5 mm
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Length
10
Mounting conditions
Flush
Net weight
10
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PA6.6
Rated switching distance (mm)
1
Switching element function
normally open NO
Switching frequency (kHz)
3
Volume
6
Volume unit
CMQ
Weight unit
GRM
Width
60
