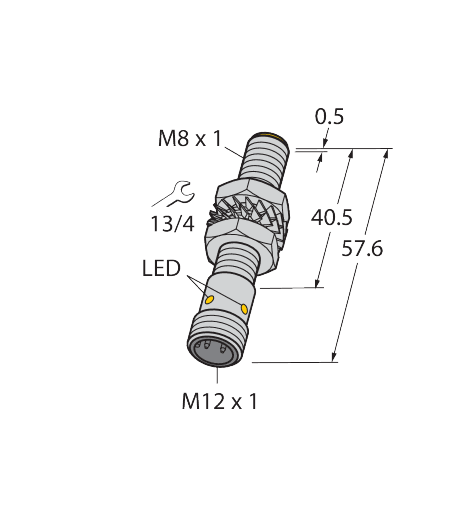

Inductive Sensor With Extended Switching Distance
BI3-M08E-VP6X-H1341
Order ID no. 4602817
In Stock
home
Turck-Shop
Sensors
Inductive Sensors
BI3-M08E-VP6X-H1341
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 8 mm
Design
Threaded barrel
Dimension unit
MMT
EAN/UPC code
4047101412277
Electrical connection
Connector
Gross weight
23
Height
10
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Length
55
Mounting conditions
Flush
Net weight
23
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP-GF20
Rated switching distance (mm)
3
Special features
Sn +
Switching element function
Complementary contact
Switching frequency (kHz)
2.8
Volume
5.5
Volume unit
CMQ
Weight unit
GRM
Width
10
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
3
List Price
A$430.57
Item Total
A$430.57
