BI1.5-EG08-AN6X-H1341 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

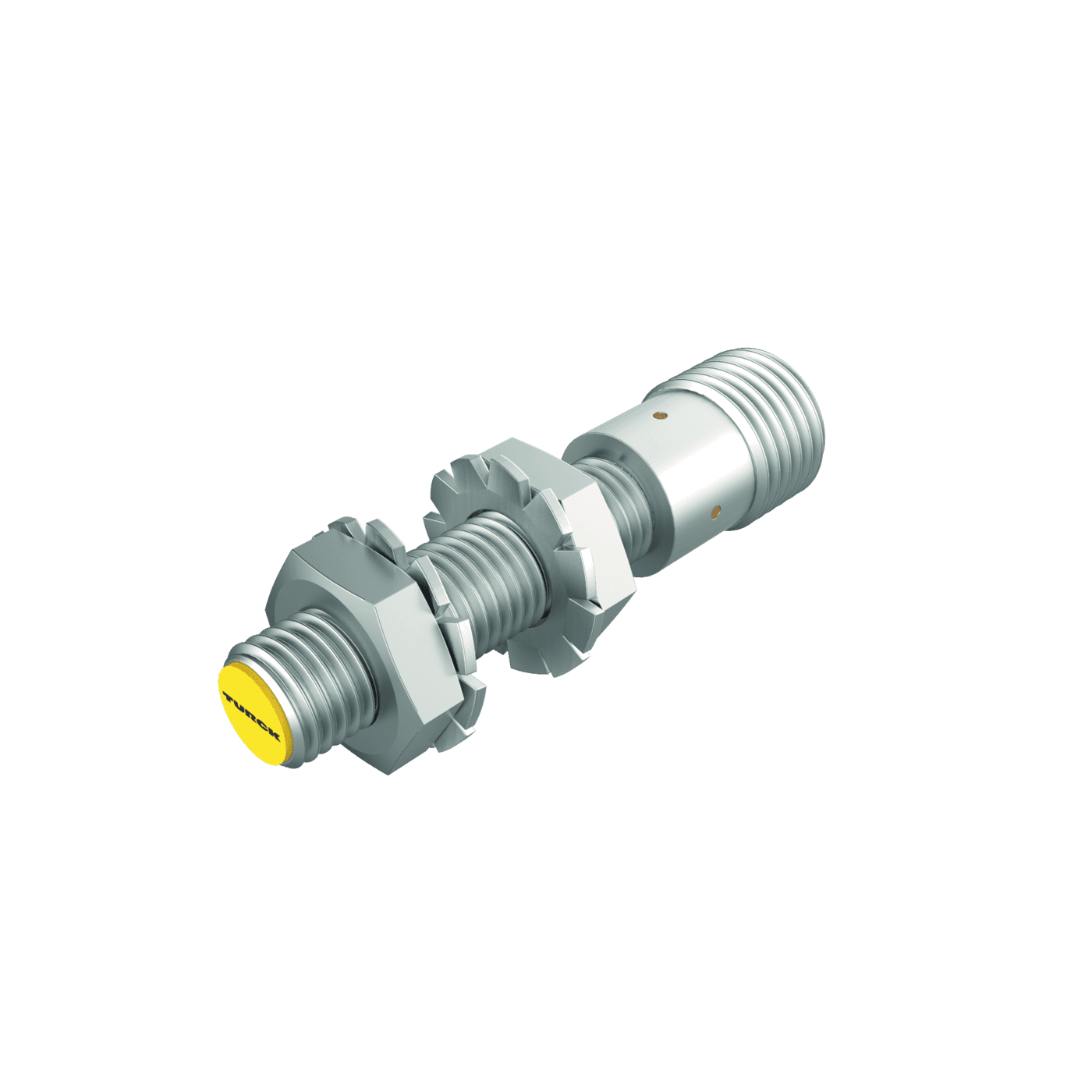

Inductive Sensor
BI1.5-EG08-AN6X-H1341
Order ID no. 4602360
home
Home
Loading...
Technical Data
Downloads

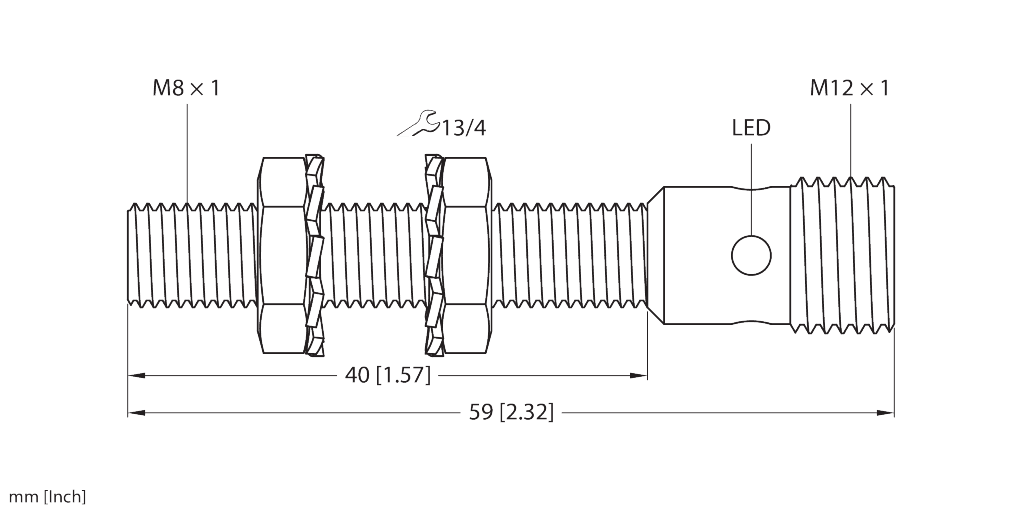

CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Connector type
M12 x 1
Design
Threaded barrel
Dimension unit
MMT
EAN/UPC code
4047101152883
Electrical connection
Connector
Gross weight
22
Height
20
Housing diameter (mm)
⌀ 8 mm
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Length
120
Mounting conditions
Flush
Net weight
22
Operating voltage
DC
Output function
NPN
Protection class
IP67
Quality active face
PA6.6
Rated switching distance (mm)
1.5
Switching element function
normally open NO
Switching frequency (kHz)
3
Volume
192
Volume unit
CMQ
Weight unit
GRM
Width
80
home
Turck-Shop
Sensors
Inductive Sensors
BI1.5-EG08-AN6X-H1341
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
1.5
In Stock
List Price
A$372.48
Item Total
A$372.48
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
