Inductive Sensor With Increased Temperature Range

BI2-EG12-Y1X/S100 7M

Order ID no. 4012003

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Base unit: PCE
Cable length (m): 7

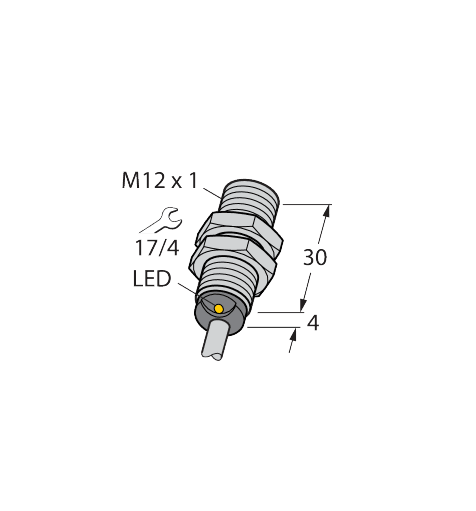

Construction size: ⌀ 12 mm
Design: Threaded barrel
Dimension unit: MMT
EAN/UPC code: 4047101090918
Electrical connection: Cable
Gross weight: 300
Height: 40
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Length: 100
Mounting conditions: Flush
Net weight: 300
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 2
Switching frequency (kHz): 5
Volume: 400
Volume unit: CMQ
Weight unit: GRM
Width: 100

In Stock
List Price	A$367.70
