Inductive Sensor With Extended Switching Distance
NI10U-QP08-AP6X2
Order ID no. 1662015
In Stock
List Price
A$291.42
home
Turck-Shop
Sensors
Inductive Sensors
NI10U-QP08-AP6X2
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Cable color
Gray
Cable length (m)
2
Design
Rectangular

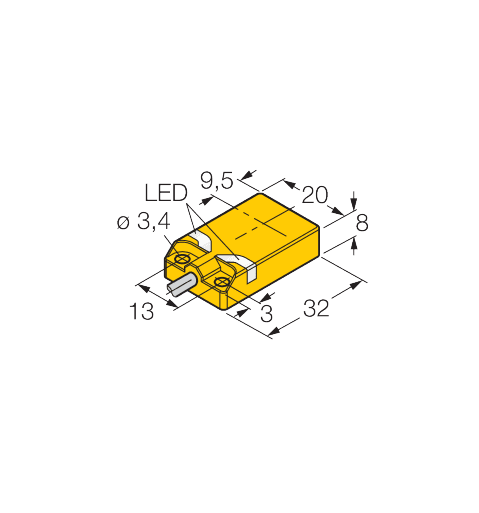

Dimensions
32 mm x 20 mm x 8 mm
Dimension unit
MMT
EAN/UPC code
4047101194586
Electrical connection
Cable
Gross weight
34
Height
10
Housing material
Plastic
Housing quality
PP
Housing surface
Yellow
Length
130
Mounting conditions
Non-flush
Net weight
34
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP
Rated switching distance (mm)
10
Special features
Factor 1, Resistant to magnetic fields, uprox+
Switching element function
normally open NO
Switching frequency (kHz)
0.25
Volume
169
Volume unit
CMQ
Weight unit
GRM
Width
130
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
10
Item Total
A$291.42
