NI2-K09-0.095/0.11-BDS-2AP6X3-H1141/S34 | TURCK - Your Global Automation Partner
Inductive Sensor Monitoring kit for spanners
NI2-K09-0.095/0.11-BDS-2AP6X3-H1141/S34
Order ID no. 1650039
home
Home
Loading...
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Cable color
Gray
Cable length (m)
0.095
Connector type
M12 x 1
Design
Monitoring Kit for Spanners

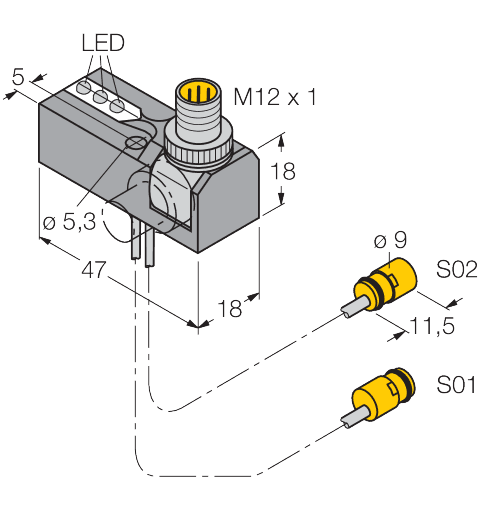

Dimensions
47 mm x 18 mm x 18 mm
Dimension unit
MMT
EAN/UPC code
4047101081695
Electrical connection
Connector
Gross weight
42
Height
10
Housing material
Plastic
Housing quality
Trogamit
Length
80
Mounting conditions
Non-flush
Net weight
42
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP GR-20
Rated switching distance (mm)
1.2
Special features
Resistant to magnetic fields
Switching element function
normally open NO
Switching frequency (kHz)
0.03
Volume
64
Volume unit
CMQ
Weight unit
GRM
Width
80
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
1.2
