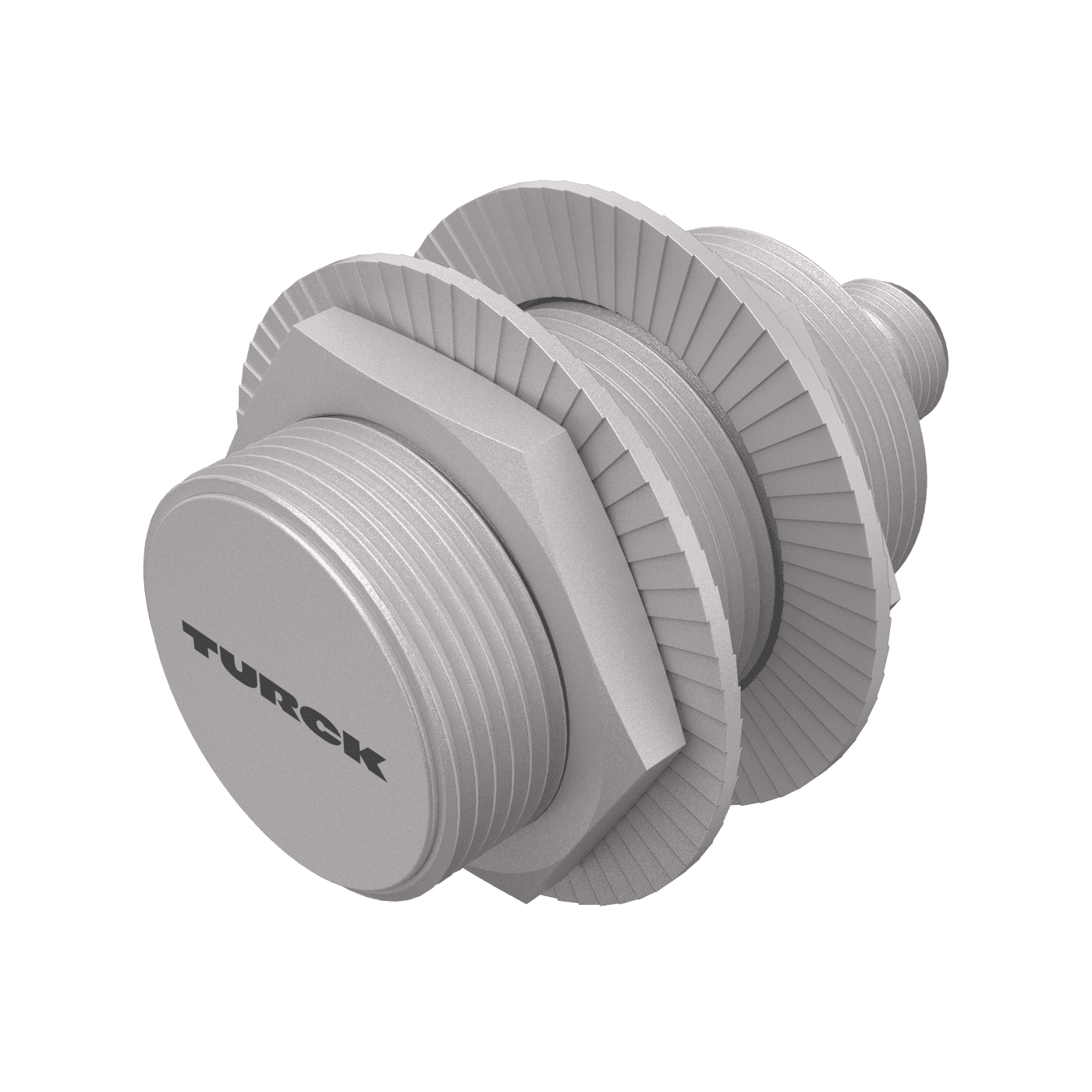

Inductive Sensor

BI20U-MT30-AP6X-H1141

Order ID no. 1644881

In Stock
List Price	A$383.63

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Base unit: PCE
Connector type: M12 x 1

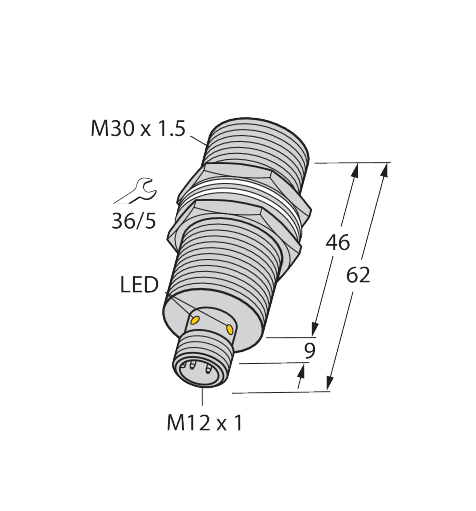

Construction size: ⌀ 30 mm
Design: Threaded barrel
Dimension unit: MMT
EAN/UPC code: 4047101391381
Electrical connection: Connector
Gross weight: 148
Height: 25
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Length: 65
Mounting conditions: Flush
Net weight: 148
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 20
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox3
Switching element function: normally open NO
Switching frequency (kHz): 1
Volume: 40.625
Volume unit: CMQ
Weight unit: GRM
Width: 25
