Inductive Sensor For the food industry

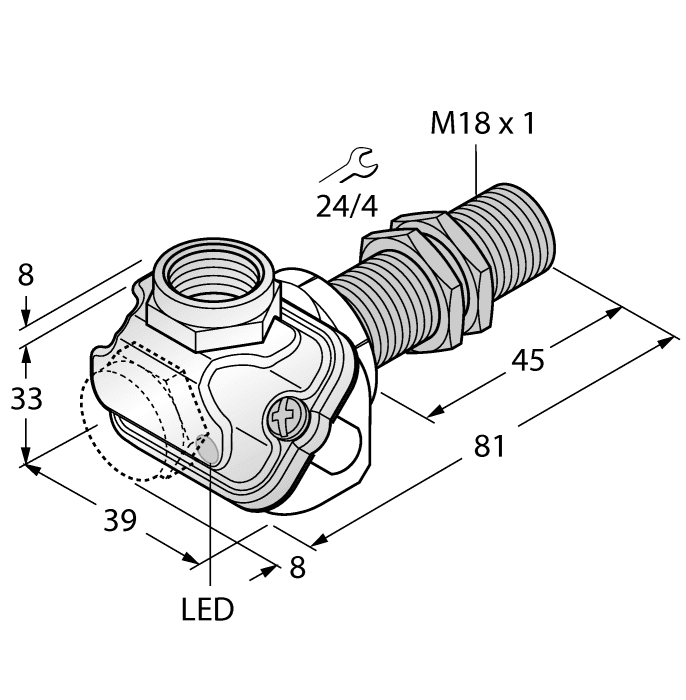

BI8U-EM18WDTC-AP6X

Order ID no. 1634762

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Base unit: PCE
Connector type: Removable cage clamp terminals
Design: Threaded barrel
Dimension unit: MMT
EAN/UPC code: 4047101209884
Electrical connection: Terminal chamber
Gross weight: 92
Height: 20
Housing diameter (mm): ⌀ 18 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Length: 100
Mounting conditions: Flush
Net weight: 92
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: normally open NO
Switching frequency (kHz): 1.5
Volume: 200
Volume unit: CMQ
Weight unit: GRM
Width: 100

In Stock
List Price	A$364.10
